Description
Overview

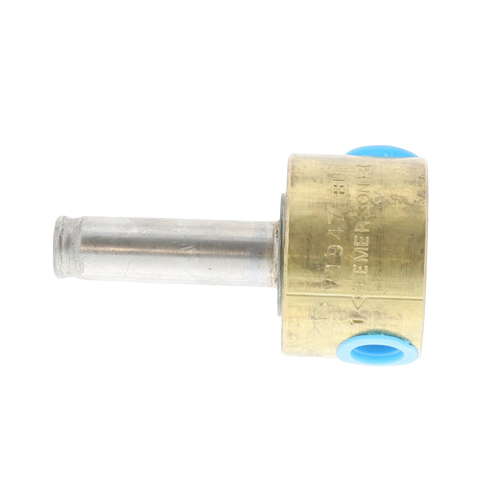

The Copeland 056110 is a 2-way, normally closed industrial solenoid valve engineered for reliable on/off fluid control in demanding HVAC, plumbing, and industrial applications. Featuring a durable brass valve body and a compact 1/4″ NPT connection, this valve is designed for use with air and water media and is compatible with both AC and DC voltage supplies.
Key Features
- 2-way, normally closed (N/C) solenoid valve — closes automatically when de-energized for fail-safe operation
- Brass valve body construction for corrosion resistance and long service life
- 1/4″ NPT port connections for easy installation into standard pipe systems
- Flow coefficient (Cv) of 0.34 for precise, controlled flow regulation
- Operating pressure range: 0–150 PSI for air and water with AC voltage
- Operating pressure range: 0–75 PSI for air and water with DC voltage
- Compatible with both AC and DC voltage inputs for installation flexibility
- Suitable for air and water media
- Model: 204CD1/4B1/8B
Specifications
- SKU: 056110
- Model: 204CD1/4B1/8B
- Valve Type: 2-Way, Normally Closed
- Connection Size: 1/4″ NPT
- Flow Coefficient (Cv): 0.34
- Body Material: Brass
- Media: Air and Water
- Max Operating Pressure (AC Voltage): 0–150 PSI
- Max Operating Pressure (DC Voltage): 0–75 PSI
- Voltage: AC and DC compatible
Applications
- HVAC system fluid control
- Industrial process automation
- Compressed air systems
- Water control and distribution systems
- OEM equipment integration
