Description

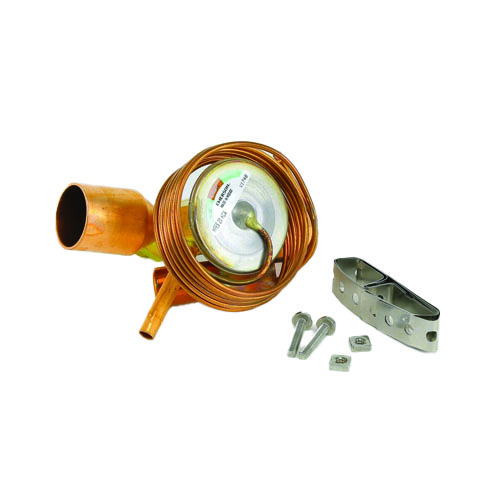

The Copeland 058490 (Model HFES 20 HCA 5FT 7/8 x 1 1/8 ODF S/T) is a heavy-duty, externally equalized Thermal Expansion Valve (TXV) engineered for demanding commercial heat pump applications. Designed to deliver precise refrigerant metering at 20-ton capacity, this valve ensures optimal system efficiency and reliable superheat control across a wide range of operating conditions.
Featuring sweat (ODF) connections and a straight-body configuration, the 058490 integrates cleanly into new installations and retrofit projects alike. The 5-foot capillary tube provides installation flexibility, allowing the thermostatic bulb to be positioned accurately on the suction line for responsive, accurate sensing. External equalization ensures consistent performance even in systems with higher pressure drops across the evaporator coil — a critical requirement in larger commercial heat pump systems.
Key Features
- Model: HFES 20 HCA 5FT 7/8 x 1 1/8 ODF S/T
- SKU: 058490
- Refrigerant Compatibility: R22 / R407C
- Rated Capacity: 20 Ton
- Application: Heat Pump Charge
- Body Style: Straight Body
- Connection Type: Sweat (ODF — Outside Diameter Fitting)
- Inlet Connection Size: 7/8″
- Outlet Connection Size: 1-1/8″
- Capillary Tube Length: 5 Feet
- Equalization Type: Externally Equalized
Benefits
- External equalization compensates for evaporator pressure drop, maintaining accurate superheat control in large-tonnage systems
- Dual refrigerant compatibility (R22/R407C) supports both legacy and modern heat pump installations
- 5-foot capillary tube allows flexible bulb placement for precise suction line sensing
- Sweat connections provide secure, leak-resistant joints for long-term reliability
- Straight-body design simplifies installation in tight mechanical spaces
- 20-ton capacity rating suits commercial and light-industrial heat pump systems
Applications
- Commercial heat pump systems
- R22 and R407C refrigerant circuits
- Large-tonnage evaporator coil installations
- Retrofit and new-construction HVAC projects
