Description

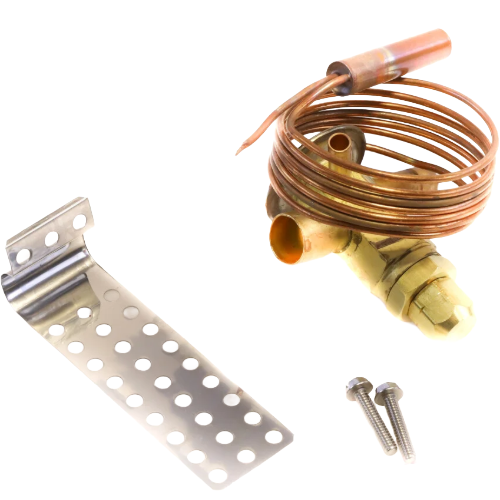

The Copeland 062088 (Model AAE 5 HW100 5FT 3/8 X 5/8 ODF S/T) is a precision-engineered Thermal Expansion Valve (TXV) designed for reliable refrigerant metering in commercial and residential HVAC and refrigeration systems. With a 5-ton capacity rating and compatibility with R22 and R407C refrigerants, this valve delivers consistent superheat control and system efficiency across a broad range of applications.
Featuring a straight body configuration with 3/8″ liquid line and 5/8″ suction line sweat (ODF) connections, the valve integrates easily into standard copper piping systems. The 5-foot capillary tube provides flexible bulb placement for accurate sensing, while the external equalizer port ensures precise pressure compensation — particularly important in systems with significant evaporator pressure drop or multiple circuits.
The MOP (Maximum Operating Pressure) charge of 100 PSI provides built-in compressor protection by limiting evaporator pressure during pull-down conditions, preventing compressor overload on startup.
Key Features
- Refrigerant compatibility: R22 and R407C
- Capacity: 5 Ton
- Connection type: Sweat (ODF) — 3/8″ liquid line x 5/8″ suction line
- Body style: Straight body
- Capillary tube length: 5 feet
- Equalization: Externally equalized for accurate superheat control
- MOP charge: 100 PSI — protects compressor during high-load startup
Specifications
- SKU: 062088
- Model: AAE 5 HW100 5FT 3/8 X 5/8 ODF S/T
- Brand: Copeland
- Refrigerants: R22 / R407C
- Nominal Capacity: 5 Ton
- Inlet Connection: 3/8″ ODF Sweat
- Outlet Connection: 5/8″ ODF Sweat
- Capillary Tube: 5 ft.
- Equalizer Type: External
- MOP Setting: 100 PSI
Applications
- Split-system air conditioners and heat pumps
- Commercial refrigeration systems
- R22 retrofit and R407C drop-in replacement applications
- Systems requiring MOP protection for compressor longevity
