Description

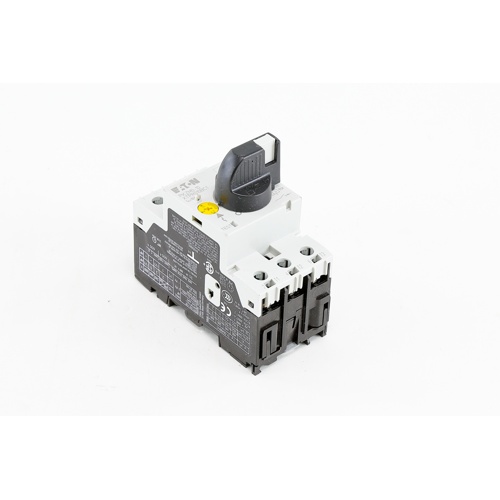

The Cutler Hammer-Eaton XTPR010BC1 is an IEC-rated manual motor protector engineered to provide dependable branch circuit protection and motor control for HVAC and industrial motor applications. Designed as part of Eaton’s XT series of IEC motor protection devices, this unit combines motor protection and switching functions in a single compact package, reducing panel space requirements and simplifying wiring.
Product Overview
Manual motor protectors (MMPs) like the XTPR010BC1 serve as a cost-effective alternative to traditional fuse and contactor combinations. They provide overload, short-circuit, and phase-loss protection in one device, making them ideal for protecting HVAC blower motors, fan motors, pump motors, and compressor auxiliary circuits.
Key Features
- IEC-rated manual motor protector from Eaton’s trusted Cutler Hammer XT series
- 10A current rating for motor branch circuit protection
- Combines overload, short-circuit, and switching protection in one compact unit
- Manual ON/OFF switching with built-in trip indication
- Suitable for HVAC motor applications including fans, blowers, and pumps
- Compact DIN rail or panel-mount design saves valuable enclosure space
- Positive locking mechanism prevents accidental restart after a trip event
- Compatible with Eaton XT series accessories for expanded functionality
Applications
- HVAC blower and fan motor protection
- Hydronic pump motor branch circuit protection
- Compressor auxiliary and control circuit protection
- Commercial and light industrial motor control panels
- Air handling unit motor circuits
Why Choose Cutler Hammer-Eaton
Eaton’s Cutler Hammer brand is a globally recognized leader in electrical protection and control components. The XTPR series is engineered to meet rigorous IEC standards, ensuring consistent performance, long service life, and compatibility with a broad range of motor control accessories and enclosures.
