Description

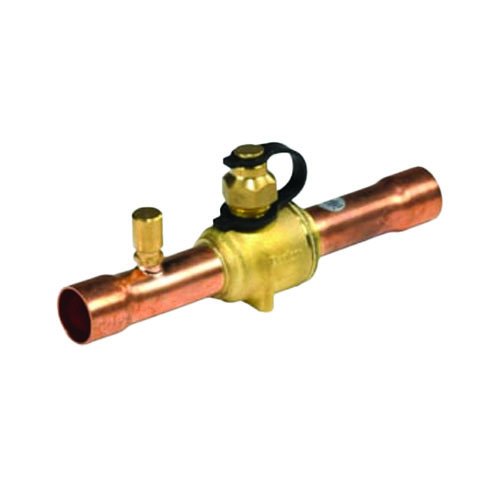

The Danfoss 009L8065 is a manually operated shut-off ball valve designed for refrigeration and air-conditioning systems. It features a 7/8″ ODF (outside diameter flare) connection and includes an access port for pressure measurement or refrigerant charging. This valve is suitable for bi-directional flow and is constructed from durable brass to withstand high-pressure environments.
Key Features:
- Connection Type: 7/8″ ODF (solder)
- Material: Brass body with copper connections
- Maximum Working Pressure: 650 psig (45 bar)
- Flow Direction: Bi-directional
- Access Port: Schrader valve included for pressure measurement or refrigerant charging
- Temperature Range: -40°F to 212°F (-40°C to 100°C)
- Approval: UL Listed, CE evaluated, and China RoHS compliant
- Refrigerant Compatibility: Suitable for a wide range of refrigerants, including R134a, R22, R404A, R410A, R513A, and more
- Application: Ideal for use in commercial refrigeration and air-conditioning systems
