Description

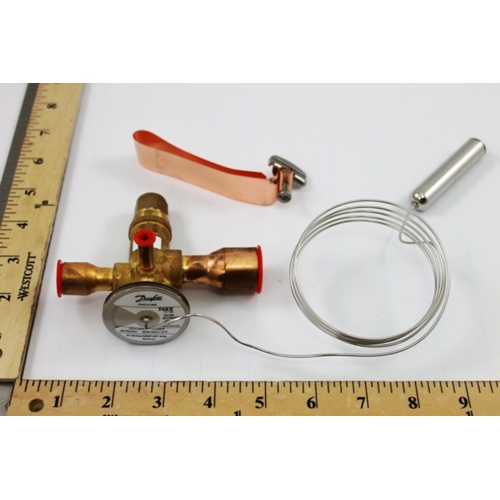

The Danfoss 067N2007 is a heavy-duty, externally equalized Thermal Expansion Valve (TXV) engineered for reliable refrigerant metering in commercial and light-industrial HVAC and refrigeration systems. Classified as Type TGEX 10, this valve delivers precise superheat control across a wide range of operating conditions, making it a trusted choice for technicians and contractors working with R22 and R407C systems.
Key Features
- Type TGEX 10 externally equalized thermal expansion valve for accurate superheat control
- Rated capacity of 11 tons for R22 and R407C refrigerants
- Maximum Operating Pressure (MOP) of 667 PSI for safe, high-pressure system operation
- Straight body configuration for straightforward inline installation
- 5/8″ ODF inlet x 7/8″ ODF outlet connections
- 60″ capillary tube provides flexible bulb placement during installation
- Number 11 orifice included for proper flow calibration
- Includes bulb strap for secure thermal bulb mounting
Specifications
- SKU: 067N2007
- Valve Type: Externally Equalized TXV (Type TGEX 10)
- Refrigerant Compatibility: R22, R407C
- Rated Capacity: 11 Ton
- Maximum Operating Pressure (MOP): 667 PSI
- Body Style: Straight
- Inlet Connection: 5/8″ ODF
- Outlet Connection: 7/8″ ODF
- Capillary Tube Length: 60″
- Orifice Number: 11
- Equalization: External
- Includes: Bulb strap
Application
The Danfoss TGEX 10 series TXV is designed for use in split systems, rooftop units, and other commercial refrigeration and air conditioning equipment where precise refrigerant flow control is critical. The external equalizer port ensures accurate superheat regulation even in systems with significant evaporator pressure drops, while the 60″ capillary tube allows for flexible remote bulb placement. Compatible with both R22 and R407C refrigerants, this valve is well-suited for new installations and retrofit applications alike.
