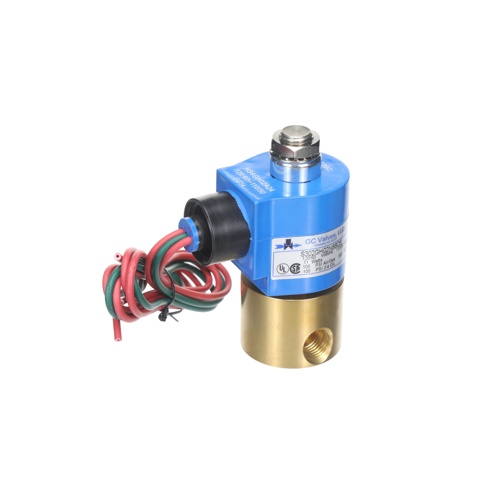

GC Valves S302GH02N8BD5 1/4″ N/O Solenoid Valve 0-100 PSI Air/Water/Oil 120V

Description

GC Valves S302GH02N8BD5 — 1/4″ Normally Open Solenoid Valve

The GC Valves S302GH02N8BD5 is a 1/4″ normally open (N/O) solenoid valve engineered for dependable, automated fluid control across a wide range of HVAC, industrial, and mechanical system applications. Rated for air, water, and oil service with a 0–100 PSI operating pressure range and a 120V AC coil, this valve delivers versatile, long-lasting performance in demanding environments.

Key Features

• 1/4″ port size for compact inline installation
• Normally Open (N/O) configuration — valve opens when de-energized, closes when energized
• Operating pressure range: 0–100 PSI
• Compatible media: Air, Water, and Oil
• 120V AC coil voltage for standard electrical system compatibility
• Designed for reliable, repeatable on/off flow control
• Suitable for HVAC, refrigeration, pneumatic, and fluid handling systems

Application

The S302GH02N8BD5 is ideal for use in automated control systems where flow must be shut off upon electrical energization. Its multi-media compatibility makes it a go-to solution for contractors and engineers working with compressed air lines, water circuits, and light oil systems. The 120V coil integrates seamlessly with standard control panels and building automation systems.

Specifications

• Brand: GC Valves
• SKU: S302GH02N8BD5
• Port Size: 1/4″
• Valve Action: Normally Open (N/O)
• Pressure Range: 0–100 PSI
• Media: Air, Water, Oil
• Coil Voltage: 120V AC
