Description

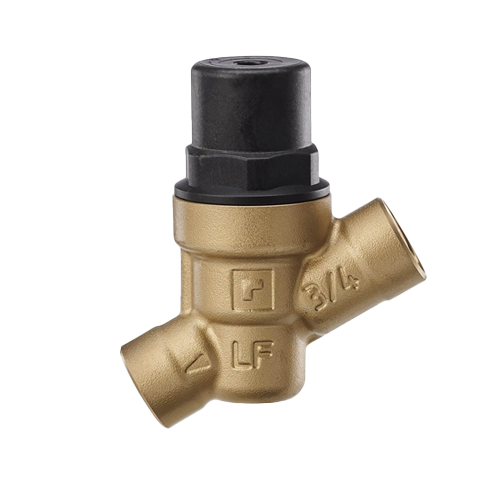

The Honeywell/Resideo Braukmann DS05-101-LF is a high-performance, lead-free pressure regulating valve designed to maintain consistent outlet pressure across varying inlet supply pressures. Ideal for both residential and commercial potable water systems, this valve ensures optimal water flow, protecting plumbing fixtures and appliances from pressure fluctuations.
Specifications:
- Ambient Operating Temperature (Min): 33°F, 1 °C
- Ambient Operating Temperature (Max): 140°F, 60 °C
- Color: Bronze, Black
- Connection Size: 3/4 in
- Connection Type: Female NPT
- Differential Pressure (Min): 14.5 psi, 100 kPa
- Inlet Pressure (Max): 250 psi, 1724 kPa
- Lead Free: Yes
- Media Temperature (Min): 33°F, 1 °C
- Media Temperature (Max): 140°F, 60 °C
- Number of Connections: 2
- Product Height: 4.2 in, 107 mm
- Product Length: 3.7 in, 95 mm
- Product Weight: 1.33 lb, 607 g
- Product Width: 2 in, 50 mm
- Valve Body Material: Lead-free ECO BRASS
- Valve Body Pattern: Straight Through
- Application: Indoor Potable Water, Outdoor Potable Water, Indoor Irrigation, Outdoor Irrigation
- Valve Type: Pressure Regulating Valve
- DN Size: DN20
- Controlled Media: Water
- Product Features: Screw Adjustment (1 turn) ± 7 psi (48.3 kPa)
- Valve Diaphragm Material: Fabric-reinforced diaphragm
- Outside Use: Yes
- Number of Gauge Taps: None
