Description

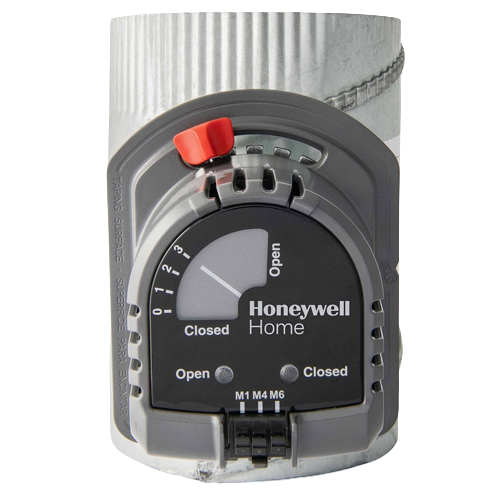

Honeywell Home ARD Series Round Zone Dampers provide reliable airflow control for residential and light commercial HVAC zoning systems. Designed for normally-open applications, the ARD uses a 24V motor to power the damper closed and a spring return to automatically reopen the damper when power is removed.
The ARD Series is commonly used with Honeywell Home TrueZONE electronic zoning systems and other compatible HVAC zone controls. Each damper features adjustable close-position stops, a tightly sealing gasketed blade for minimal air leakage, and male and female ends for connection to rigid or flexible round ductwork.
Available in multiple duct diameters from 5 inches through 20 inches, the ARD Series makes it easy to select the correct damper size for a wide range of zoning installations.
Features:
- 24 VAC power-close / spring-open operation
- Normally-open, fail-safe design
- Compatible with Honeywell Home TrueZONE and other HVAC zoning systems
- Adjustable damper close-position range stops
- Gasketed blade helps minimize air leakage
- Male crimped and female uncrimped ends for rigid or flexible round duct
- Simple 2-wire M1/M6 installation
- Optional M4 connection can power the open-position LED
- Rated for static pressure up to 1 in. w.c.
- Less than 1% leakage at 1/2 in. w.c.
- Galvanized steel construction
- Available in 5″, 6″, 7″, 8″, 9″, 10″, 12″, 14″, 16″, 18″ and 20″ sizes
