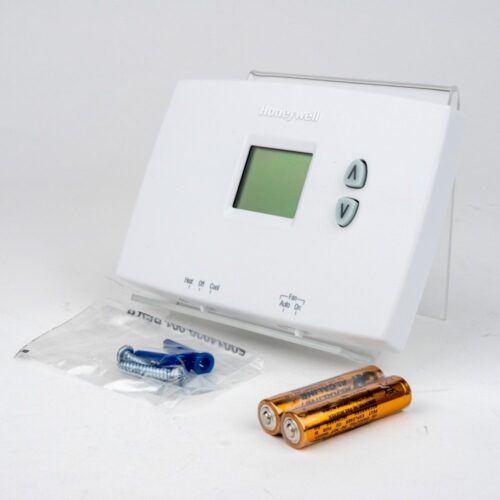

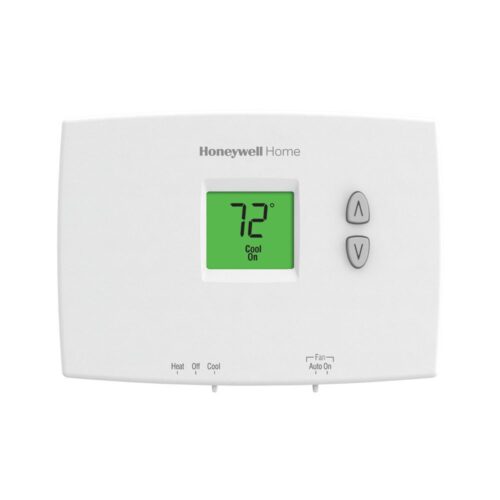

Honeywell PRO TH1110DH1003 Horizontal Non-Programmable Thermostat

Name: Honeywell PRO TH1110DH1003 Horizontal Non-Programmable Thermostat
Brand: Resideo
SKU: TH1110DH1003
Price: 44.99 USD
Availability: OutOfStock

BRAND: Resideo SKU: TH1110DH1003

This product has been discontinued.

SUGGESTED REPLACEMENT

Honeywell TH1110U4000 FocusPRO N100 Non‑Programmable Thermostat

SKU: TH1110U4000

BRAND: Resideo
View Replacement

Description

The TH1110DH1003 Honeywell/Resideo horizontal PRO 1000 non-programmable digital thermostat provides electronic control of 24 Vac conventional 1 heat / 1 cool and heat pump systems or 750 mV heating systems. Backlit and dual powered.

Features and Benefits

1H/1C conventional and heat pump systems without auxiliary heat, millivolt compatible
Easy to read backlit display
Manual changeover
Value priced
Hardwired or battery powered
2-Year Warranty

Additional information

Warranty	2 Years
Voltage	24V
Temperature	120°F (49°C) Max, 32°F (0°C) Min
Power Type	Battery, Hardwired
Terminal Designations	C, G, O, RC, W
System Type	Heat Pump Systems
Display	LCD
Touchscreen	No
Auto Changeover	No
Programmable Fan	No
Vacation Hold	No
Set Point Limiting	No
Keypad Lockout	No
Filter Monitor	No
Remote Inputs	No
Remote Outputs	No
Terminal W2	No
Terminal Y2	No
Terminal O or O/B	No
Terminal E	No
Wi-Fi	No
Programmability	Non-Programmable
Stages	Single
Backlight	Yes
Terminal R, Rh, or Rc	Yes
Terminal C or X	Yes
Terminal W or W1	Yes
Terminal Y or Y1	Yes
Terminal G	Yes
UPC	085267573566
Imprinting Available	Yes
