Description

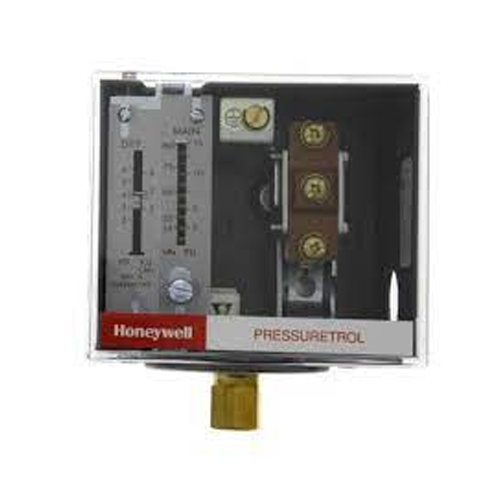

Maintain optimal pressure control with the Honeywell L91B1035 Modulating PressureTrol Controller, designed to dynamically regulate pressures between 0 and 15 psi in hydronic, steam, air, and non-corrosive gas systems. Part of Honeywell’s Series 90 Proportioning PressureTrol controllers, this model offers accurate, smooth control with adjustable differential settings, ideal for systems that require fine-tuned pressure variation.
Features:
- Use with steam, air, noncombustible gases, or other fluids non-corrosive to the brass or phos-bronze (300 psi models) bellows.
- Do NOT use with combustible mediums or any medium chemically harmful to phos-bronze bellows (10-300 psi models) or brass bellows (all other pressure range models).
Specifications:
- Pressure Range: 0 psi to 15 psi
- Switch Operation: Modulating
- Temperature Range (F): 32°F to 150°F
- Min Pressure (PSI): 0
- Max Pressure (PSI): 25
- Pressure Differential: 1.5 psi to 12 psi
- Min Pressure Differential (PSI): 1.5
- Max Pressure Differential (PSI): 12
