Description

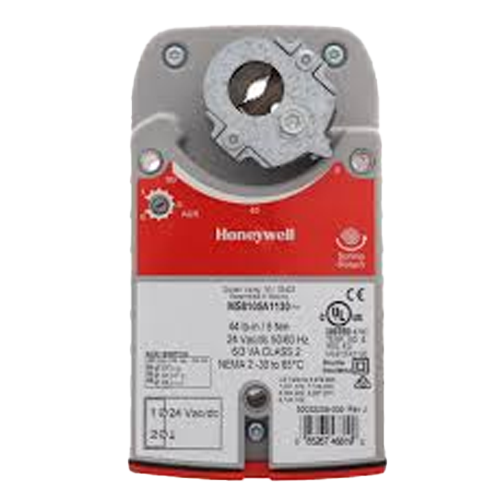

The Honeywell MS8105A1130 is a robust spring-return, direct-coupled actuator delivering a torque of 44 lb‑in (5 Nm) and optimized for two-position (SPST) control applications such as dampers and valves. It’s well-suited for air-handling units, ventilation flaps, louvers, and ball valves. This 24 VAC/DC actuator combines durability, precision, and safety in one compact package.
Specifications:
- Product Type: Actuator
- Actuator Type: Damper, Valve
- Application: HVAC
- Torque: 44 lb-in
- Fail Safe Mode: Spring Return
- Control Signal: SPST, Two position
- Supply Voltage: 24 Vac/dc
- Mount: Direct Coupled
- Features: NEMA 2
