Genesis 18 AWG 4 Conductor Thermostat Wire Solid Copper CL2 Low Voltage HVAC Cable

Description

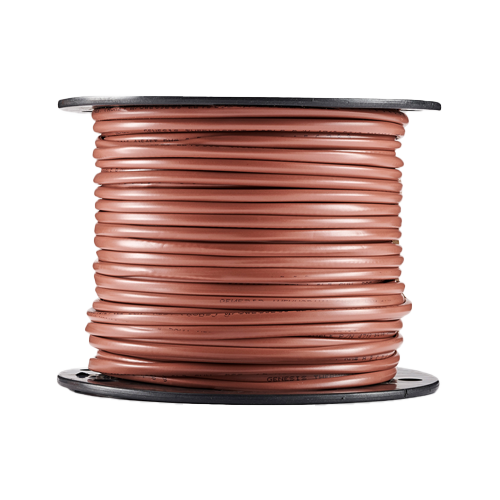

Genesis 18/4 Solid Thermostat Wire – Reliable Low-Voltage Cable for HVAC Installations

Designed for dependable HVAC performance and easy installation, this Genesis General Purpose Rated Thermostat Cable delivers reliable low-voltage signal transmission for thermostats, controls, and HVAC equipment. Built with solid bare copper conductors, this 18 AWG 4-conductor cable provides excellent conductivity with reduced voltage drop, helping ensure consistent system communication and performance.

Engineered with contractors in mind, the durable PVC jacket and integrated rip cord make stripping and installation faster and more efficient. Sequential footage markings allow easy tracking of cable usage on larger jobs, while sunlight resistance and code-compliant construction make this cable suitable for a variety of approved applications.

Key Features

• 18 AWG, 4-conductor solid thermostat wire
• Bare copper conductors for reliable conductivity and reduced voltage drop
• Polypropylene insulation with durable PVC outer jacket
• Built-in rip cord for faster stripping and easier installation
• Sequential footage markings for tracking cable usage
• Rated for 150V operation
• Operating temperature range: -20°C to 75°C
• Sunlight resistant construction
• Unshielded design for general-purpose HVAC and control applications
• Standards & Compliance
• UL 1685 General Purpose Rated
• UL 13 Type CL2 Power-Limited Circuit Cable
• REACH/RoHS compliant

Applications

• Suitable for HVAC thermostat and low-voltage control installations including:
• Metal raceways compliant with NEC 300.22(B)
• Solid-bottom metal cable trays with solid metal covers
• Building installations outside air-handling spaces and risers
• Approved sunlight-exposed applications
