Description

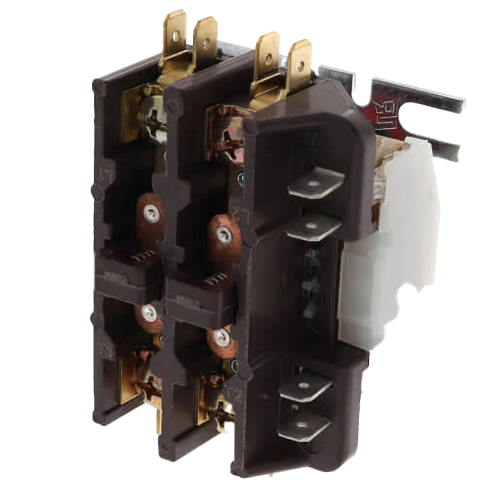

The Honeywell/Resideo R8246A1038 is a high-performance 2-pole electric heat relay designed for efficient control of heating elements and fans in electric furnaces. Operating at 24V AC, this relay offers reliable and quiet on-off switching, ensuring optimal performance in residential and light commercial heating applications.
Features:
- Designed for quiet operation. R8246A and R8229A replace over 50 competitive electric heat primaries, including the R8330 Electric Furnace Sequencer.
- Use on furnaces with a line voltage or pilot duty limit.
- Simple ON-OFF switching – readily understood and easily serviced- Eliminates cold drafts on system startup.
Specifications:
- Application: Electric Heat Contactor
- Dimensions (in.): 2 3/16 in. high x 2 5/16 in. wide x 3 5/16 in. deep
- Dimensions (mm): 56 mm high x 58 mm wide x 84 mm deep
- Electrical Connections: Male 1/4 in. (6 mm) quick-connects plus terminal clamp screws
- Temperature Ratings (C): -20 C to +65 C
- Temperature Ratings (F): -4 F to +149 F
- Contact Ratings (resistive): 48 A @ 240/277 Vac 1st pole resistive only
- Poles: 2
- Contact Connections (coil): No. 10 terminal clamp screws and double male 1/4 inch quick-connects
- Coil Ratings Voltage: 24 Vac
