Description

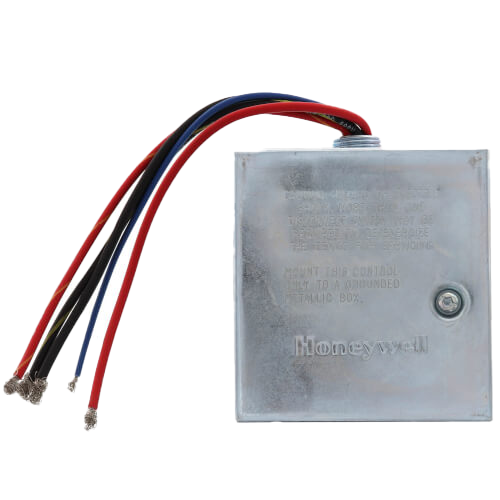

Effortlessly control electric heating systems like baseboard, ceiling, or duct heaters using the Honeywell/Resideo R841E1068 Electric Heater Relay. Designed for use with a two-wire, 24 VAC thermostat, this durable SPST relay delivers consistent performance and reliable protection for high-voltage heating loads.
Specifications:
- Heater Relay with Spst switching
- Switching: SPST
- Electrical Connections (main): Leadwires
- Electrical Contacts (Full Load): 7.0 A @ 208 Vac, 240 Vac, 277 Vac; 14 A @ 120 Vac
- Electrical Ratings, Contacts (locked rotor): 42 A @ 208 Vac, 240 Vac, 277 Vac; 84 A @ 120 Vac
- Electrical Ratings, Contacts (resistive): 22 A @ 120 Vac, 208 Vac, 240 Vac; 19 a @ 277 Vac
- Frequency: 60 Hz, 50 Hz
- Dimensions: 3 7/8 in. high x 2 13/16 in. wide x 1 1/2 in. deep
- Temperature Ratings: -20 F to +150 F
- Includes: Enclosure w/conduit bushing and integral transformer; dual load.
