Description

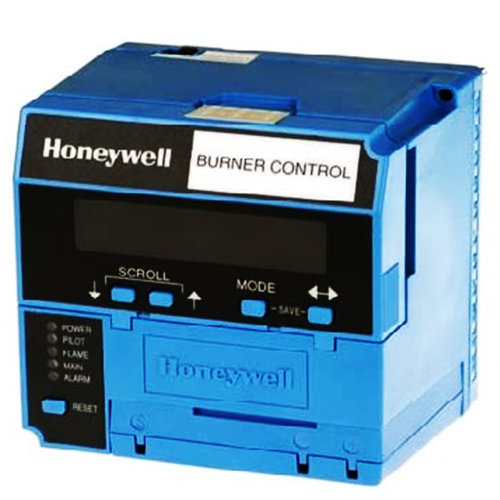

The Honeywell RM7800L1087 is a high-performance burner control designed for commercial and industrial heating applications. This advanced control module offers programmable sequencing, flame supervision, and diagnostics, ensuring safe and efficient burner operation. It includes the S7800A1142 display module and supports Valve Proving System (VPS) functionality, making it suitable for applications requiring LHL, LF, and HF proven purge cycles.
Features:
- Functions Include Automatic Burner Sequencing, Flame Supervision, System Status Indication, System Or Self Diagnostics And Troubleshooting
- Compatible With Existing Honeywell Flame Detectors
- Keyboard Required To Setup Valve Proving Feature And Change Post Purge Time
- 4 Second Or 10 Second Pilot Flame Establishing Period
- Access For External Electrical Voltage Checks
- Application Flexibility And Communication Interface Capability
- Five LEDs Provide Sequence Information
- Power LED Blinks Fault Code On Lockout
- Five Function Run/Test Switch
- Interchangeable Plug-In Amplifiers
- Local Or Remote Annunciation Of Operation And Fault Information (Optional)
- Non-Volatile Memory Retains History Files And Lockout Status After Loss Of Power
