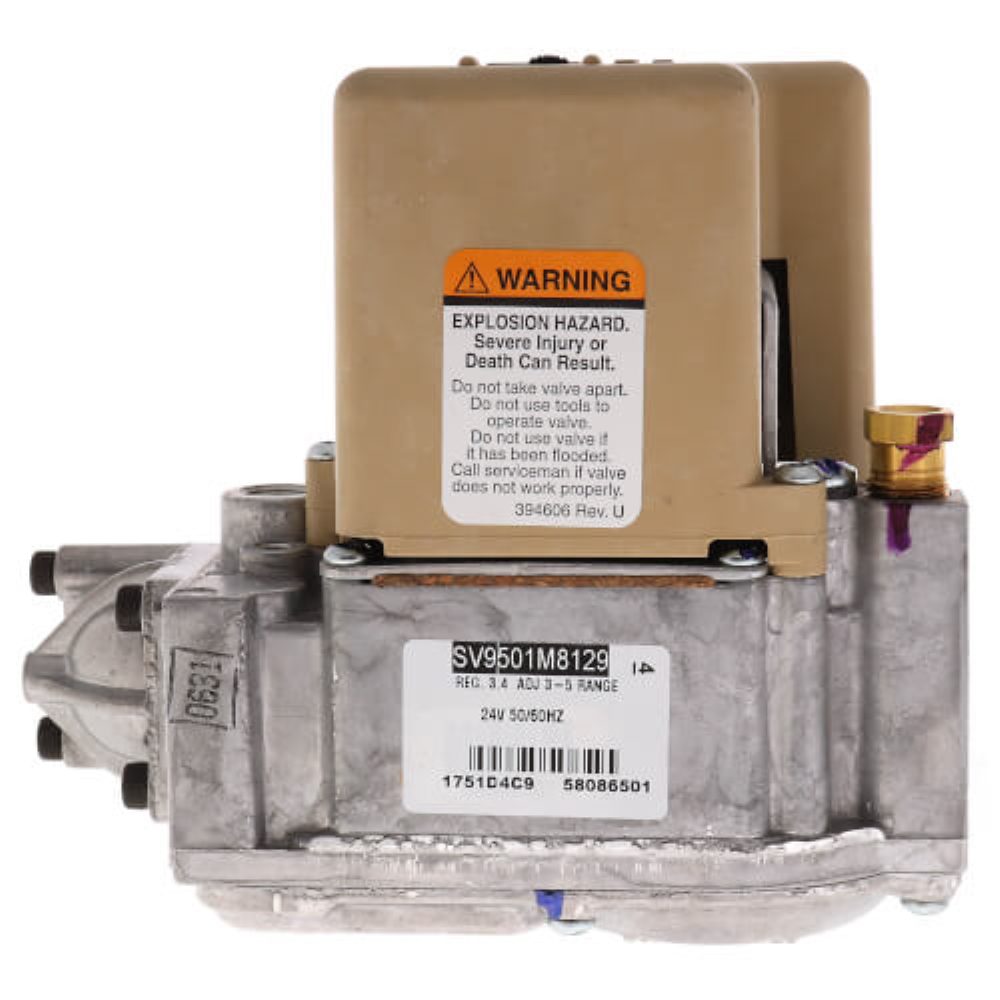

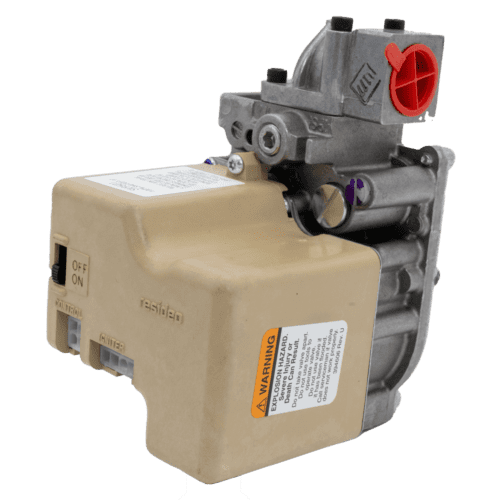

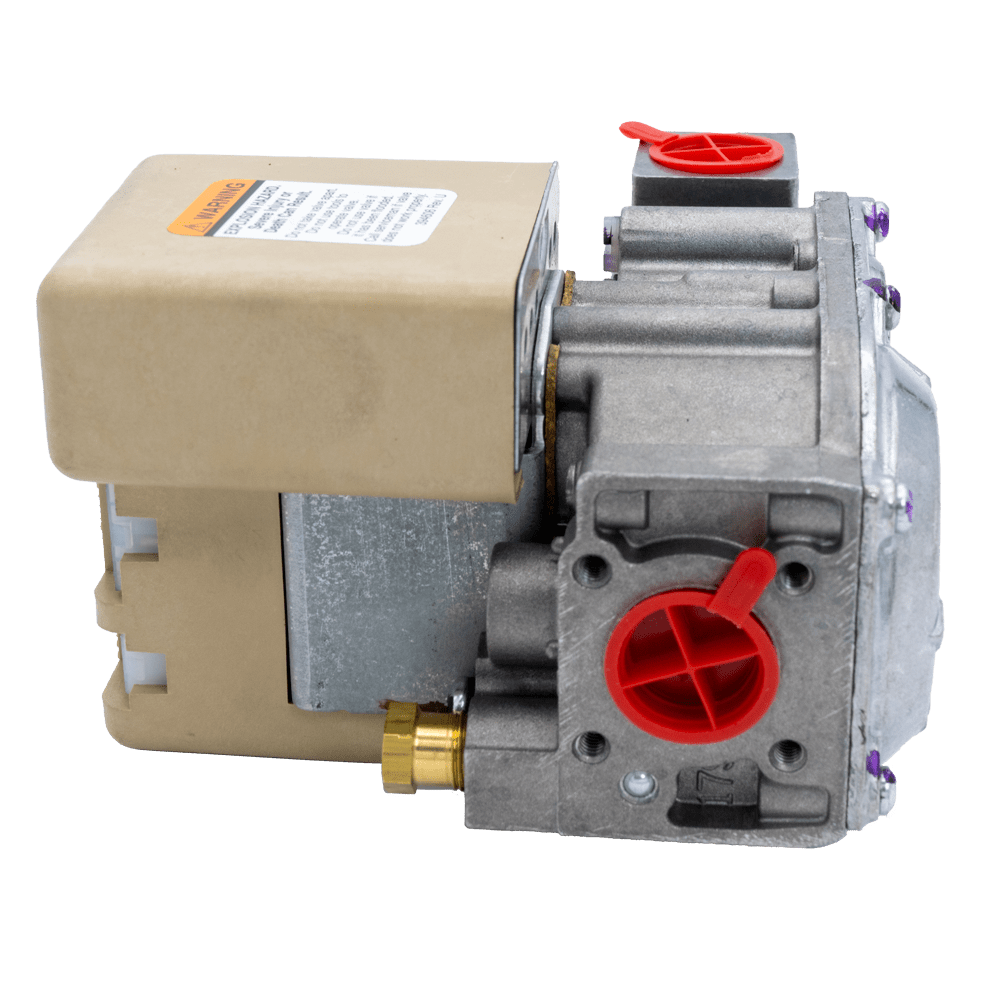

Honeywell SV9501M8129 Fast Opening Smart Gas Valve for Hot Surface Pilot

BRAND: Honeywell SKU: SV9501M8129

$357.62

MSRP: $856.97
You save 58%

Fast Opening Smart Gas Valve for Hot Surface Pilot

Free Shipping
Ships Tomorrow
Availability:

12 In Stock

Description

The Honeywell SV9501M8129 is an intermittent hot surface pilot SmartValve® System fast-fast opening gas valve that combines gas flow control and electronic intermittent pilot sequencing functions into a single unit. This product family offers several different intermittent pilot sequences for a wide range of applications. The specific application of the SmartValve System is the responsibility of the appliance manufacturer. They are directly compatible with the Q3450 or Q3480 Intermittent Pilot burners used with the original controls on the appliance.

Applications
  • Residential Furnaces
  • Roof-Top Furnaces
  • Residential Boilers
  • Unit Heaters
  • Infrared Heaters
  • Space Heaters
  • Commercial Cooking Units

Additional information

Mounting

0° to 90°, Any Upright Position from Gas Control Knob, Includes Vertical Placement

Electrical Ratings

24 VAC

Frequency

50 Hz/60 Hz

Tradeline Value

Universal

Flame Failure Response Time

1.6 sec @ 3µA

Ambient Temperature

-40°F to 175°F

Ignition System Type

Intermittent Hot Surface Pilot Ignition

Ignition Sequence

Intermittent Pilot

Type of Gas

Natural (LP with included conversion kit)

Ignition Source

Pilot

Ignition Trials to Lockout

Continuous Retry

Ignition Trial Time

90 seconds

Typical Ignition Hardware

Q3450, Q3480

Body Pattern

Straight-through

Opening Characteristics

Fast-Fast

Pressure Regulator Setting

0.87 kPa

Pressure Ratings

3.5 kPa

Inlet Size

1/2" NPT

Outlet Size

1/2" NPT

Pilot Gas Outlet

Yes

Capacity

Maximum at 1" P.D.–150 ft³/hr; Maximum–200 ft³/hr; Minimum–20 ft³/hr

Pressure Tapping

1/8" NPT

UPC 085267791083
