Description

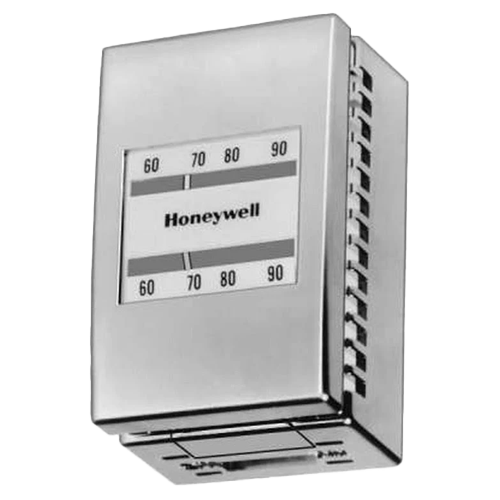

The Honeywell TP973B2171 is a high-performance pneumatic thermostat designed for single-temperature control in commercial HVAC systems. This reverse-acting thermostat modulates output pressure in response to rising temperatures, making it ideal for cooling applications. Featuring a sleek satin chrome cover, it combines functionality with modern aesthetics—perfect for visible wall-mounted installations in offices, schools, and public buildings.
Features:
- Includes: Thermostat and stain chrome cover
- Durable TP970 Series Thermostat. Direct Acting (DA) and Reverse Acting (RA) models are available.
- Backplate has molded air connections-no separate fittings needed.
- Universal locking cover with satin chrome finish and horizontal, vertical, or blank window options available.
- Other Covers Available.
- Low capacity thermostat.
- Built in restrictor for two-pipe applications.
Specifications:
- Max Pressure (PSI): 25
- Mount: Wall
- Setpoint: Single
- Action: Reverse Acting
- Setpoint Temp Range: 59°F to 90°F (Day)
- Max Temp (F): 100°F
