Description

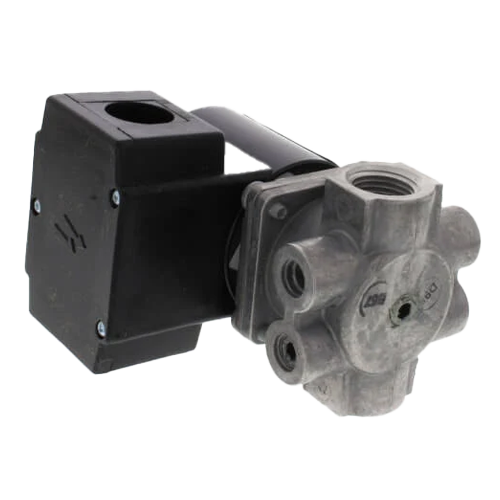

The Honeywell V4295A1130 is a high-performance, normally closed solenoid gas valve designed for precise control of gas flow in industrial and commercial applications. With a 1-1/4″ NPT connection and a 5 PSI pressure rating, this valve ensures reliable operation and safety compliance. It is suitable for use with natural gas, propane, air, and mixed gases.
Features:
- V8295A, S are used with 24 Vac controllers.
- V4295A, S are used with 120 Vac controllers.
- Positive close off of gas flow when de-energized.
- High valve spring force allows up to 0.7 psi back pressure at valve seat.
- No inlet pressure influence at valve seat.
- Inlet pressure changes do not affect ability to close valve.
- Low operating noise.
- Low rush-in current.
- Upstream and downstream taps allows tapping and testing pressure points.
Specifications:
- Size: 1-1/4″
- Capacity (CFH): 1950
- Voltage: 120v
- Fuel Type: Propane, Manufactured, Natural Gas, Air, Mixed
- Pressure Rating: 5 psi
- Body Pattern: Straight-Through
- Mount: Vertical to 90 degrees from vertical
- Material: Die Cast Aluminum
- Min Temp (F): -40°F
- Max Temp (F): 140°F
