Description

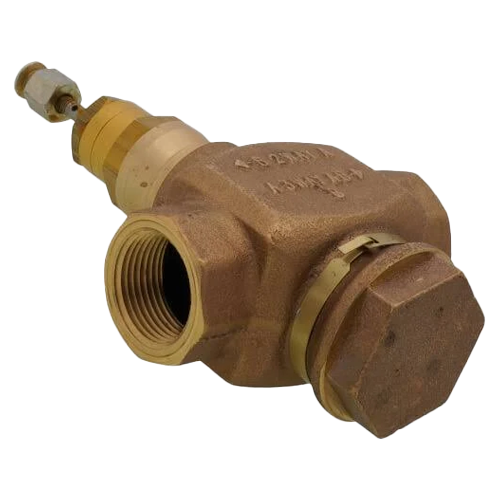

Engineered for high-end HVAC systems, the Honeywell V5011N1065 is a durable and precise 1″ two‑way globe valve designed for modulating or two-position control of hot/cold water, steam, and glycol solutions (up to 50% concentration).
Features:
- Red brass body with NPT-threaded end connections.
- Low seat leakage rate (less than or equal to 0.05 percent of Cv).
- 50:1 rangeability per VDI/VDE 2173.
- Spring-loaded, self-adjusting packing.
- Accurate positioning to ensure state of the art temperature control.
- Directly coupled electric and pneumatic actuators for easy mounting.
- Sizes range from 1/2 in. to 2 in.
- Valve designs provide equal percentage flow characteristic for water and linear flow characteristic for steam.
- Stainless steel stem and metal-to-metal seats.
- Repack and rebuild kits for field servicing.
Specifications:
- Connection Type: Threaded
- Flow Capacity (Cv): 11.7
- Application: Point of Source
- Size: 1″
- Body Pattern: 2-Way
- Flow type: Equal Percentage
- Max Pressure (PSI): @248°F 217
- Valve Action: Stem down to close
- Action: Direct Acting
