Description

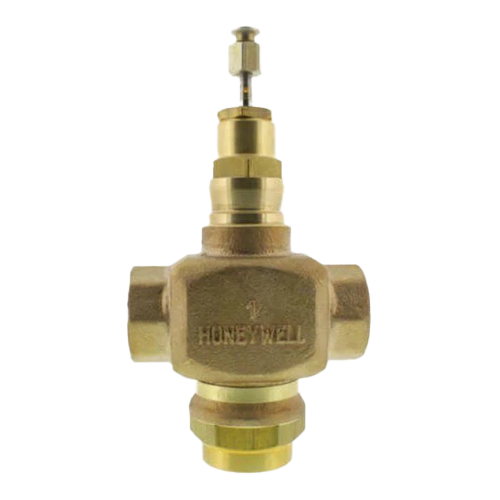

Achieve precise control over heating and cooling water with the Honeywell V5013N1055, a robust ¾″ NPT three-way globe valve engineered for mixing hot water, cold water, or glycol (up to 50%) in HVAC systems.
Specifications:
- Application: Point of Source
- Size: 3/4″
- Body Pattern: 3-Way
- Connection Type: FNPT x FNPT
- Connection Method: Threaded
- Flow Capacity (Cv): 7.3
- Material: Brass
- Max Pressure (PSI): 240
- Temperature Range (F): 36°F – 248°F
- Max Temp (F): 248°F
- Min Temp (F): 36°F
