Description

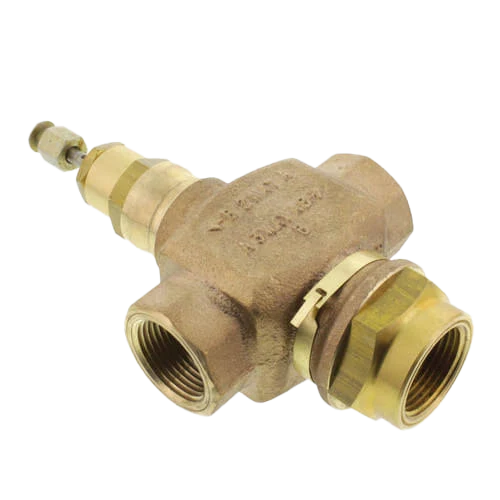

The Honeywell V5013N1063 is a high-performance 1″ 3-way globe mixing valve designed to provide precise control of hot water, cold water, and glycol solutions (up to 50% concentration) in heating and cooling HVAC applications. Ideal for modulating or two-position control systems, this valve ensures optimal temperature regulation and energy efficiency.
Specifications:
- Application: Point of Source
- Size: 1″
- Body Pattern: 3-Way
- Connection Type: FNPT x FNPT
- Connection Method: Threaded
- Flow Capacity (Cv): 11.7
- Material: Brass
- Max Pressure (PSI): 240
- Max Temp (F): 248°F
- Min Temp (F): 36°F
- Temperature Range (F): 36°F – 248°F
