Description

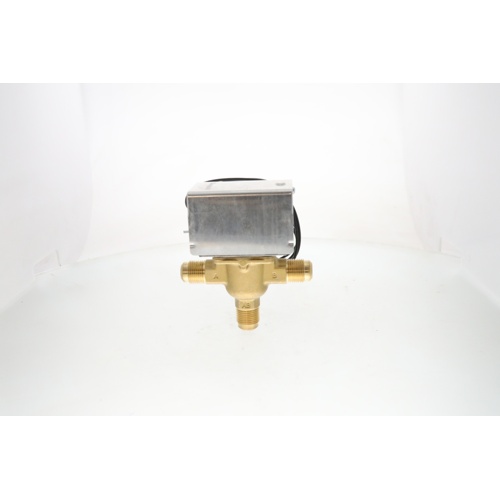

The Honeywell V8044A1002 is a 3-way diverting zone valve engineered for reliable flow control in closed-loop hydronic heating systems. With a brass body, stainless steel stem, and brass seat, this valve delivers long-lasting durability and corrosion resistance in demanding hydronic applications. The spring-return actuator ensures the valve returns to its default position upon power loss, providing a fail-safe operation critical to system protection.
Key Features
- 3-way diverting configuration for precise zone flow management
- 1/2″ flare connections for straightforward installation
- 24VAC operating voltage for compatibility with standard hydronic controls
- Spring-return actuator for fail-safe, power-loss protection
- 20 lb. maximum close-off force for positive shutoff
- Brass body construction for durability and corrosion resistance
- Stainless steel stem for extended service life
- Brass seat for reliable sealing performance
- 18″ lead wire for flexible wiring connections
- Designed for use in closed-loop hydronic systems
Specifications
- SKU: V8044A1002
- Brand: Honeywell
- Valve Type: 3-Way Diverting Zone Valve
- Connection Size: 1/2″
- Connection Type: Flare
- Voltage: 24VAC
- Actuator Type: Spring Return
- Maximum Close-Off: 20 lb.
- Body Material: Brass
- Stem Material: Stainless Steel
- Seat Material: Brass
- Lead Wire Length: 18″
- Application: Closed-Loop Hydronic Systems
Application
The V8044A1002 is ideal for residential and light commercial hydronic heating systems where zone-by-zone temperature control is required. The 3-way diverting design allows the valve to redirect flow between two outlet ports, making it well-suited for primary/secondary loop configurations, radiant floor heating, and baseboard heating zone control.
