Description

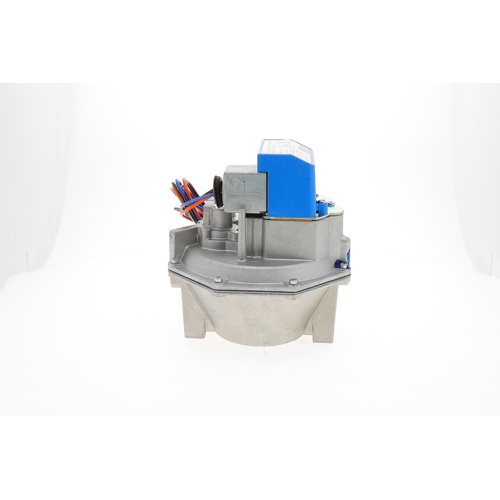

Honeywell V8944B1100 Two-Stage Normally Closed Gas Valve
The Honeywell V8944B1100 is a straight-through, two-stage, normally closed pressure-regulating gas valve engineered for reliable natural gas control in commercial and residential heating applications. With its robust aluminum body and precise pressure regulation, this valve delivers dependable performance and long service life.
Key Features
- 1-1/4″ straight-through configuration for efficient gas flow
- Two-stage operation for enhanced combustion efficiency and comfort
- Normally closed (NC) design for fail-safe operation
- 24VAC operating voltage for compatibility with standard HVAC control systems
- 1/2 lb maximum inlet pressure — rated for natural gas service
- Lightweight, durable aluminum body construction
- 1/8″ pilot tapping port for easy pilot gas connection
- Two 5/16″ bleed/pressure ports for system testing and diagnostics
- NPT threaded connections for straightforward installation
Specifications
- SKU: V8944B1100
- Brand: Honeywell
- Connection Size: 1-1/4″ NPT
- Valve Type: 2-Way, Normally Closed
- Operation: Two-Stage
- Supply Voltage: 24VAC
- Maximum Inlet Pressure: 1/2 lb (approximately 3.5″ W.C.)
- Gas Type: Natural Gas
- Body Material: Aluminum
- Pilot Tapping: 1/8″
- Bleed/Pressure Ports: Two 5/16″
Application
The V8944B1100 is ideal for use in gas-fired furnaces, boilers, unit heaters, and other heating appliances requiring two-stage gas control. Its normally closed configuration ensures the gas supply is automatically shut off whenever the valve is de-energized, providing an essential layer of safety in any heating system.
