Description

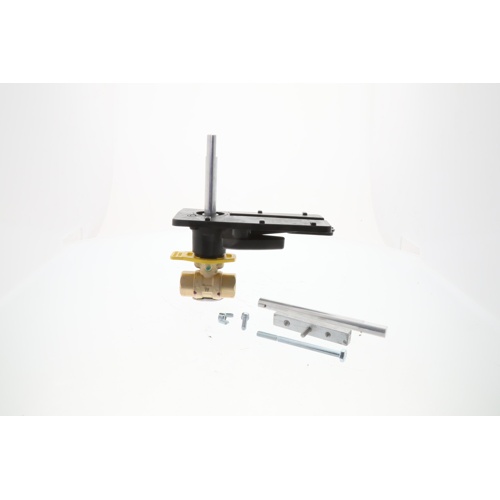

The Honeywell VBN2ABPX0000 is a 2-way, 1/2″ NPT brass ball valve engineered for precise flow control in chilled and hot water HVAC hydronic systems. Featuring an equal percentage flow characteristic, this valve delivers smooth, proportional modulation ideal for coil and heat exchanger applications. The nickel-chrome plated brass ball and stem provide exceptional corrosion resistance and long service life, while the direct coupled actuator base simplifies integration with compatible Honeywell actuators — no linkage or adapter required.
Key Features
- 2-way, equal percentage flow characteristic for precise modulation
- 1/2″ NPT end connections for easy installation
- Flow coefficient (Cv): 0.38
- Brass body construction for durability and corrosion resistance
- Nickel-chrome plated brass ball and stem for extended service life
- Direct coupled actuator base — no linkage required
- Compatible with chilled water and hot water systems
- Supports glycol solutions up to 50% concentration
Specifications
- SKU: VBN2ABPX0000
- Brand: Honeywell
- Valve Type: Ball Valve, 2-Way
- Connection Size: 1/2″ NPT
- Flow Characteristic: Equal Percentage
- Cv (Flow Coefficient): 0.38
- Body Material: Brass
- Ball and Stem Material: Nickel-Chrome Plated Brass
- Maximum Temperature: 250°F
- Fluid Compatibility: Chilled Water, Hot Water, Glycol Solutions up to 50%
- Actuator Interface: Direct Coupled Actuator Base
Applications
- Commercial and industrial chilled water systems
- Hot water heating coils and heat exchangers
- Hydronic fan coil units
- AHU and terminal unit control
- Systems utilizing glycol antifreeze solutions up to 50%
