Description
Overview

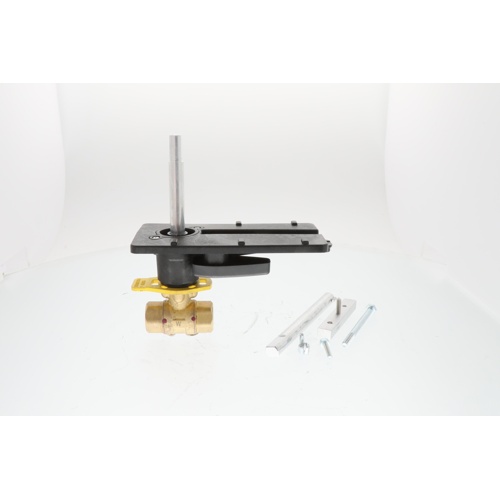

The Honeywell VBN2AKPX0000 is a 1/2″ NPT, 2-way ball valve engineered for precise flow control in chilled and hot water HVAC systems. Featuring an equal percentage flow characteristic, this valve delivers accurate, proportional control across the full range of travel — making it ideal for demanding hydronic heating and cooling applications. Its direct coupled actuator base allows for seamless integration with compatible Honeywell actuators, simplifying installation and reducing overall system complexity.
Key Features
- 1/2″ NPT pipe connection for easy integration into standard hydronic piping systems
- 2-way valve configuration for straightforward on/off or modulating flow control
- 11.7 Cv flow coefficient for reliable, high-capacity flow performance
- Equal percentage flow characteristic for precise, proportional control
- Brass body construction for durability and corrosion resistance
- Nickel-chrome plated brass ball and stem for extended service life and smooth operation
- Direct coupled actuator base for quick, tool-free actuator mounting
- Rated for chilled water and hot water applications up to 250°F maximum
- Compatible with fluid mixtures containing up to 50% glycol solution
Specifications
- SKU: VBN2AKPX0000
- Brand: Honeywell
- Connection Type: NPT
- Pipe Size: 1/2″
- Valve Type: Ball Valve, 2-Way
- Flow Characteristic: Equal Percentage
- Cv Rating: 11.7
- Body Material: Brass
- Ball and Stem Material: Nickel-Chrome Plated Brass
- Maximum Temperature: 250°F
- Glycol Compatibility: Up to 50% Glycol Solution
- Actuator Interface: Direct Coupled Actuator Base
- Application: Chilled Water and Hot Water HVAC Systems
Applications
The VBN2AKPX0000 is well-suited for a wide range of commercial and light industrial HVAC applications, including:
- Fan coil units and air handling units
- Chilled water cooling coil control
- Hot water heating coil control
- Hydronic zone control systems
- Building automation and energy management systems
- Systems utilizing glycol-based antifreeze solutions
