Description
Overview

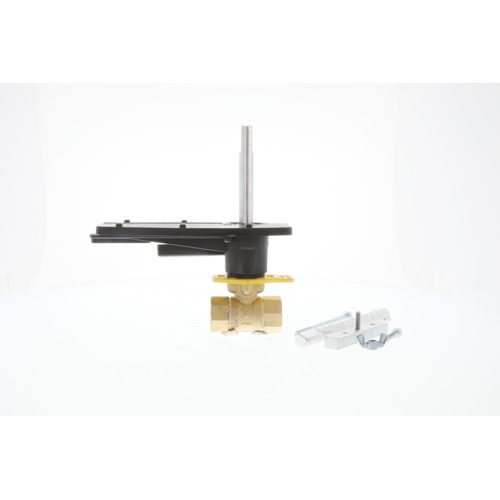

The Honeywell VBN2BHPX0000 is a 3/4″ NPT, 2-way brass ball valve engineered for reliable flow control in commercial chilled water and hot water hydronic systems. Featuring an equal percentage flow characteristic and a Cv rating of 4.3, this valve delivers precise, proportional flow modulation across its full operating range — making it an ideal choice for variable air volume (VAV) systems, fan coil units, and air handling unit coil control applications.
Key Features
- 3/4″ NPT end connections for straightforward installation into standard piping systems
- 2-way valve configuration for on/off or modulating flow control
- Flow coefficient (Cv) of 4.3 for accurate sizing in low-to-medium flow applications
- Equal percentage flow characteristic for stable, linear control response across the valve stroke
- Brass body construction for durability and corrosion resistance in hydronic systems
- Nickel-chrome plated brass ball and stem for enhanced wear resistance and long service life
- Direct coupled actuator base — compatible with Honeywell direct-coupled actuators for easy assembly without linkage hardware
- Rated for chilled water and hot water applications up to 250°F (121°C) maximum
- Compatible with fluid mixtures containing up to 50% glycol solution for freeze-protection applications
Application Suitability
The VBN2BHPX0000 is designed for use in a wide range of commercial HVAC hydronic systems, including:
- Fan coil unit (FCU) coil control
- Air handling unit (AHU) heating and cooling coil control
- Variable air volume (VAV) terminal unit control
- Chilled water distribution systems
- Hot water heating systems with glycol antifreeze solutions
- Building automation and direct digital control (DDC) systems
Specifications
- SKU / Model: VBN2BHPX0000
- Brand: Honeywell
- Valve Type: Ball Valve, 2-Way
- Connection Size: 3/4″
- Connection Type: NPT (National Pipe Thread)
- Flow Coefficient (Cv): 4.3
- Flow Characteristic: Equal Percentage
- Body Material: Brass
- Ball and Stem Material: Nickel-Chrome Plated Brass
- Maximum Temperature: 250°F (121°C)
- Glycol Compatibility: Up to 50% glycol solution
- Actuator Mounting: Direct Coupled Actuator Base
- Media: Chilled Water, Hot Water
