Description

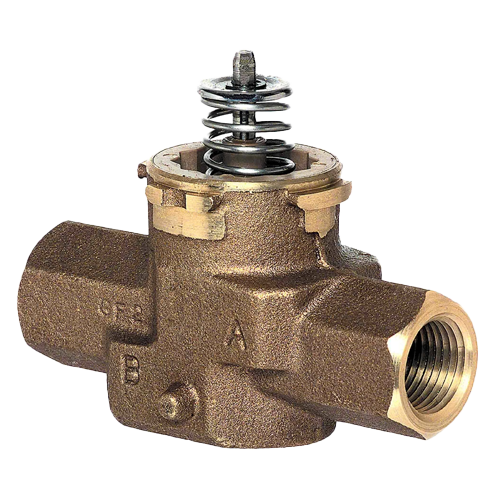

The Honeywell Home/Resideo VCZBB1100 is a two-way cartridge cage valve with a 3.5 Cv flow coefficient, designed for efficient control of hot or chilled water (with glycol up to 60%) in hydronic HVAC zoning applications. Compatible with VC-series actuators—whether on/off, floating, or proportional control—it ensures smooth, reliable performance with easy servicing.
Specifications:
- Application: Zoning
- Body Pattern: 2-Way, Straight-Through
- Size: 1/2″
- Flow type: Linear
- Ambient Temperature: 32 to 150 F
- Valve Action: Stem Up to Close Port A
- Flow Capacity (Cv): 3.5
- Max Pressure (PSI): 300
- Stem Travel: 0.4″
- Controlled Fluid: Chilled or hot water with up to 60% Glycol
- Max Differential: 60 psi
- Temperature Range (F): 34°F – 203°F
- Connection Type: Threaded
- Used With: On-Off Type VC Actuators
