Description

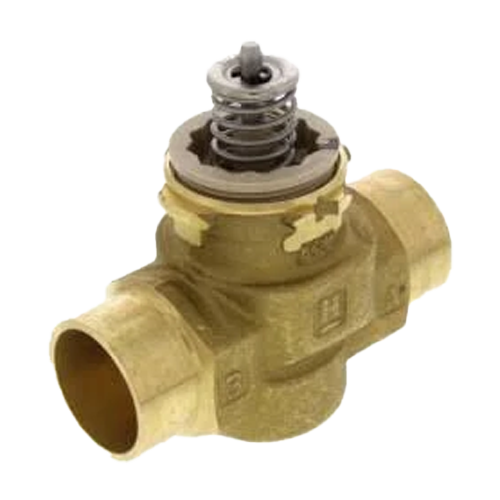

Upgrade your hydronic system with the Honeywell/Resideo VCZBD1100, a high-capacity, serviceable cartridge valve engineered for precise control of hot and chilled water (up to 60% glycol). Ideal for zone regulation in fan coils, re-heaters, floor heating, and VAV systems.
Specifications:
- Application: Zoning
- Body Pattern: Straight-Through, 2-Way
- Size: 1-1/4″
- Flow Capacity (Cv): 7
- Ambient Temperature: 32 to 150 F
- Valve Action: Stem up to close
- Flow type: Linear
- Max Pressure (PSI): 300
- Temperature Range (F): 34°F – 203°F
- Connection Type: Threaded
