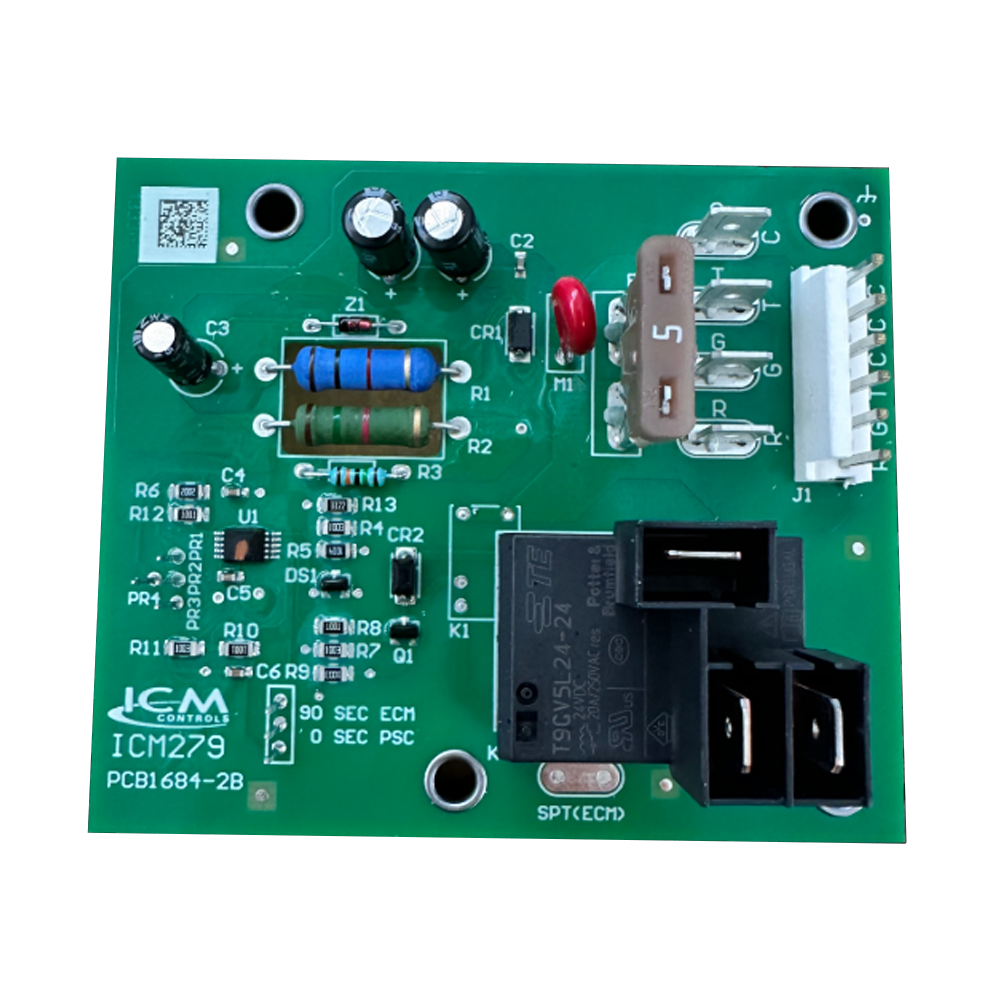

ICM Controls ICM279 Fan Blower Control Board – Post-Purge Time Delay (Carrier HK61EA006/HK61EA002 replacement)

Name: ICM Controls ICM279 Fan Blower Control Board – Post-Purge Time Delay (Carrier HK61EA006/HK61EA002 replacement)
Brand: ICM Controls
SKU: ICM279
Price: 37.91 USD
Availability: InStock

BRAND: ICM Controls SKU: ICM279

$37.91

ICM Controls ICM279 Fan Blower Control Board – Post-Purge Time Delay, Replacement for Carrier HK61EA006 / HK61EA002

This product is discontinued but still available to purchase.

Availability:

3 In Stock

Description

Optimize HVAC performance with the ICM279 Fan Blower Control Board, a reliable post-purge time delay relay designed as a direct, form-fit, and functional replacement for Carrier HK61EA006 and HK61EA002 boards.

Features:

Specifically engineered to replace Carrier HK61EA006 and HK61EA002 boards with no modifications required
Incorporates a 1-second ON delay before activating the blower motor and a 90-second OFF delay (when no jumper is installed), ensuring proper duct purge and airflow control
Robust relay designed to handle inductive blower motor loads reliably
Extends system longevity by preventing rapid blower cycling
Input: 18-30 VAC
Contact Ratings: 2 HP at 277 VAC, 1 HP at 125 VAC, and 2 A pilot duty at 250 VAC (when paired with a suitable SPD)

Additional information

Control Voltage	18–30 VAC
Contact Ratings	2 HP @ 277 VAC; 1 HP @ 125 VAC; 2 A pilot duty @ 250 VAC
ON Delay	1 sec
OFF Delay	90 sec (no jumper)
Replaces	Carrier HK61EA006; HK61EA002
