iO HVAC ZP6-ESP-KIT 6-Zone 4H/2C Control Panel Kit with ESP

BRAND: iO HVAC Controls SKU: ZP6-ESP-KIT

This product is only available to licensed contractors that are members of our TradesElite program.

*Already a member, login

6-Zone 4H/2C Control Panel Kit with ESP

Free Shipping
Ships Tomorrow
Availability:

6 In Stock

Description

The ZP6 with ESP is a 6 zone, two-position forced air zone control panel that can be expanded to as many as 12 zones. The panel can be used with single-stage, multi-stage, heat pump or dual fuel equipment with up to 4 stages of heating and 2 stages of cooling. Slide switch configuration makes setup quick and easy. This zone control system comes with built in ESP static pressure control which eliminates the need for a bypass damper when used with the standard 3-wire MD damper series. A wide range of control options provides ultimate application flexibility.

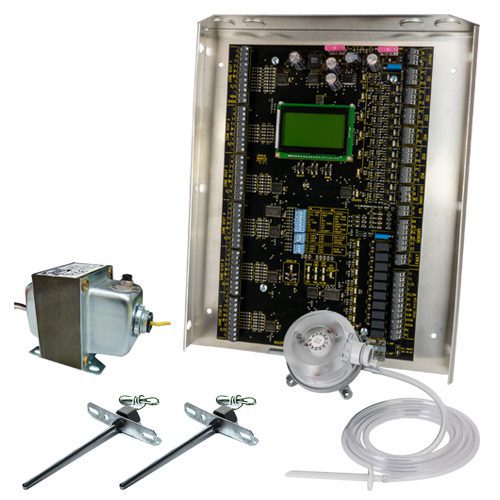

Kit includes:  Panel, static pressure sensor, 2 duct temperature sensors and 75VA transformer



Features and Benefits



  • Up to 6 zones
  • Electronic static pressure relief option (No Bypass Required)
  • Adjustable high/low limit & high/low balace point control via LED interface
  • 2nd stage capacity control option
  • Auto changeover
  • Priority cooling or majority wins
  • Twenty minute time share option
  • LED status indication
  • Humidification & dehumidification pass through terminals (Zone 1)
  • Staging by zone thermostat or staging timer
  • Purge cycle option
  • DS/BK variable speed fan control
  • Electronic duct temperature sensor
  • Includes transformer

Additional information

Construction

,

Mounting Bracket Type

Adjustable Limits

Operating Temperature

Dimensions

UPC 840119900569
