Description

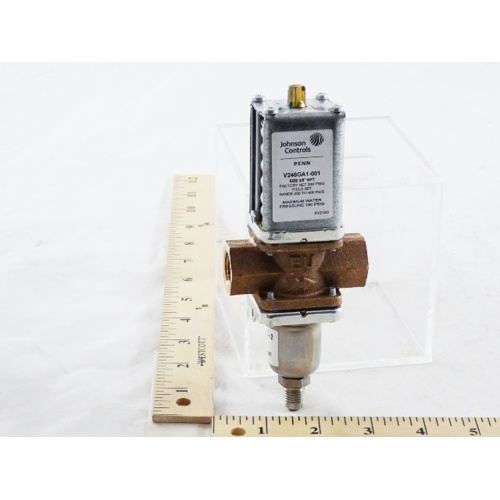

The Johnson Controls V246GA1-001C is a commercial-grade, direct-acting pressure actuated water regulating valve engineered for reliable performance in high-pressure refrigerant applications. Built from durable cast brass, this valve automatically modulates condenser water flow in response to refrigerant head pressure, protecting compressors and optimizing system efficiency.
Key Features
- Direct-acting, pressure actuated design for precise, responsive water flow control
- 200 to 400 PSI opening point range — ideal for high-pressure refrigerant systems
- 3/8″ NPT water connection for straightforward installation into standard piping
- 1/4″ external flare fitting (Style 5) pressure element for secure refrigerant-side connection
- Commercial-type cast brass body for long-lasting durability and corrosion resistance
- Automatically regulates condenser water flow to maintain optimal head pressure
Specifications
- SKU: V246GA1-001C
- Brand: Johnson Controls
- Water Connection: 3/8″ NPT
- Opening Point Range: 200 to 400 PSI
- Pressure Element Fitting: 1/4″ External Flare (Style 5)
- Body Material: Cast Brass
- Valve Type: Direct Acting, Pressure Actuated
- Application: High-Pressure Refrigerant Systems
Application
The V246GA1-001C is designed for use in commercial refrigeration and air conditioning systems where precise condenser water regulation is critical. The valve responds directly to refrigerant head pressure, opening to allow condenser water flow as pressure rises and closing as pressure drops — maintaining consistent system performance and preventing compressor overload. The cast brass construction ensures compatibility with a wide range of water qualities and system environments.
