Description

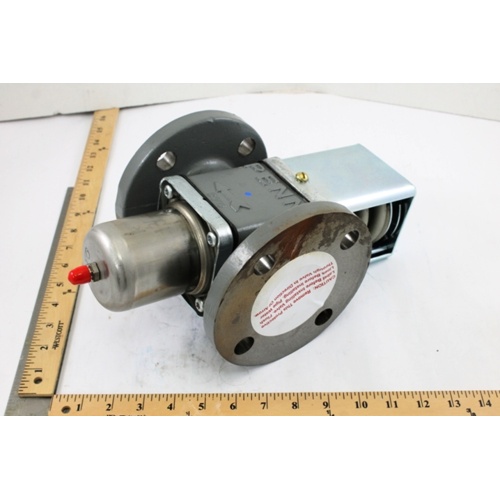

The Johnson Controls V246GS1-001C is a commercial-grade, direct acting, pressure-actuated water regulating valve engineered for high-pressure refrigerant applications. Built with a durable cast iron body and a 2″ ASME four-hole flange connection, this valve delivers reliable, automatic flow control in demanding commercial HVAC and refrigeration systems.
Key Features
- Direct acting, pressure-actuated design for precise, responsive water flow regulation
- Opening point pressure range: 200 to 400 PSI — ideal for high-pressure refrigerant systems
- 2″ ASME four-hole flange connection for secure, leak-free installation
- Commercial-type cast iron body construction for long-lasting durability in heavy-duty environments
- 1/4″ external flare fitting (Style 5) for straightforward refrigerant pressure sensing connection
- Designed specifically for use with high-pressure refrigerants
Application
The V246GS1-001C is designed for commercial and industrial refrigeration and HVAC systems where precise condenser water flow regulation is critical. The valve modulates water flow through the condenser in response to refrigerant head pressure, helping to maintain optimal system efficiency and protect compressors from high-pressure faults.
Specifications
- Brand: Johnson Controls
- Model / SKU: V246GS1-001C
- Valve Size: 2″
- Connection Type: ASME Four-Hole Flange
- Body Material: Cast Iron
- Valve Type: Direct Acting, Pressure Actuated, Water Regulating
- Opening Point Pressure Range: 200 to 400 PSI
- Pressure Fitting: 1/4″ External Flare (Style 5)
- Application: High-Pressure Refrigerant Systems
- Valve Class: Commercial Type
