Description
Overview

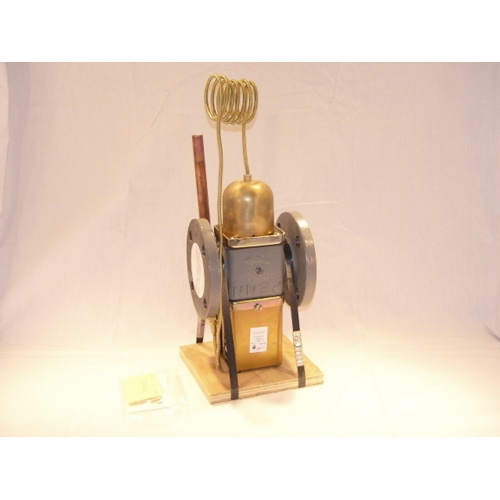

The Johnson Controls V47AS-2 is a direct acting, temperature actuated water regulating valve engineered for reliable heating system control in commercial and industrial hydronic applications. Built with a rugged cast iron body and a 2″ ASME flange connection, this valve automatically modulates water flow in response to system temperature, helping maintain consistent comfort and system efficiency without the need for external power.
Key Features
- Direct acting, temperature actuated operation — no external power required
- Heating point range: 160°F to 205°F for precise temperature-based flow control
- 2″ ASME flange end connections for secure, code-compliant installation
- Cast iron body construction for durability in demanding hydronic environments
- 6-foot capillary tube for flexible remote sensing placement
- Style 4 sensing bulb: 11/16″ diameter x 10″ long for accurate immersion temperature sensing
- 1/2″ NPT external fitting for easy integration into existing piping systems
Specifications
- SKU: V47AS-2
- Brand: Johnson Controls
- Valve Size: 2″
- Connection Type: ASME Flange
- Body Material: Cast Iron
- Operation: Direct Acting, Temperature Actuated
- Heating Point Range: 160°F – 205°F
- Capillary Length: 6 feet
- Bulb Style: Style 4
- Bulb Dimensions: 11/16″ diameter x 10″ long
- External Fitting: 1/2″ NPT
Applications
- Commercial and industrial hydronic heating systems
- Boiler water temperature regulation
- Hot water heating coil control
- Systems requiring self-contained, temperature-actuated flow modulation
Why Choose the Johnson Controls V47AS-2?
The V47 Series from Johnson Controls is a trusted solution for self-contained temperature regulation in hydronic systems. The direct acting design responds immediately to temperature changes at the sensing bulb, opening or closing the valve to maintain the desired setpoint within the 160–205°F range. The cast iron body and ASME flange connections ensure long-term durability and leak-free performance in high-demand commercial environments. The included 6-foot capillary and Style 4 bulb provide installation flexibility, while the 1/2″ NPT external fitting simplifies integration into a wide range of piping configurations.
