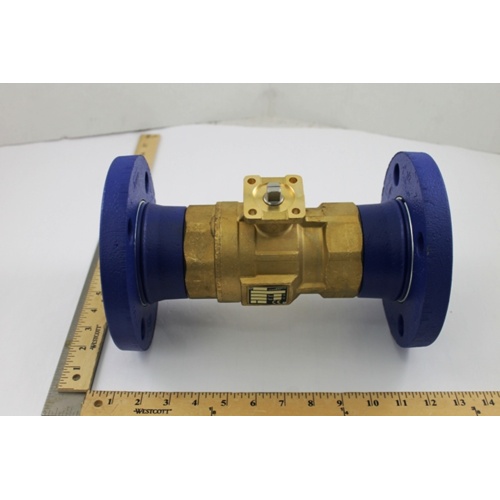

Johnson Controls VG12A5GT 2-1/2″ 2-Way Ball Valve, ASME Class 150 Flange, 74 Cv

Description

The Johnson Controls VG12A5GT is a heavy-duty 2-1/2″ two-way ball valve engineered for demanding commercial HVAC and hydronic system applications. Built with a forged brass body and stainless steel trim, this valve delivers exceptional corrosion resistance and long-term reliability in both heating and cooling systems.

Key Features

• 2-Way, equal percentage flow characteristic for precise, linear control response
• 2-1/2″ pipe size with ASME Class 150 flange end connections for secure, leak-free installation
• 74 Cv flow coefficient for high-capacity flow in large commercial systems
• Forged brass body construction for superior strength and pressure integrity
• Stainless steel trim for enhanced corrosion resistance and extended service life
• Equal percentage flow characteristic ensures accurate modulating control across the full stroke range
• Compatible with Johnson Controls actuators for fully integrated valve and actuator assemblies

Application

The VG12A5GT is ideal for use in commercial HVAC air handling units, fan coil systems, chilled water and hot water distribution loops, and other hydronic applications requiring precise flow modulation. The ASME Class 150 flanged connections make installation straightforward in standard piping systems, while the equal percentage flow characteristic ensures stable and accurate control across a wide range of operating conditions.

Specifications

• SKU: VG12A5GT
• Brand: Johnson Controls
• Valve Type: Ball Valve, 2-Way
• Pipe Size: 2-1/2″
• End Connection: ASME Class 150 Flange
• Flow Coefficient (Cv): 74
• Flow Characteristic: Equal Percentage
• Body Material: Forged Brass
• Trim Material: Stainless Steel
