$1,011.95

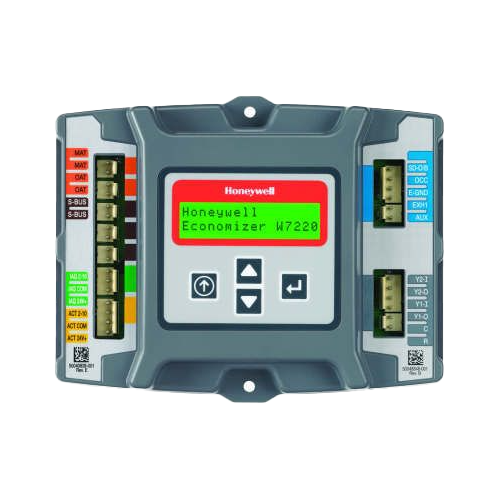

Lennox 11G24 JADE Economizer Module
96 In Stock
Upgrade your Lennox rooftop or packaged HVAC unit with the advanced JADE economizer controller, designed to reduce energy use by intelligently blending outdoor and return air. Ideal for commercial applications aiming to improve efficiency and indoor air quality.
| Product Type | Economizer controller module |
|---|---|
| Controller Model | W7220 (JADE) |
| Control Voltage | 20–30 VAC (Class 2) |
| Frequency | 50/60 Hz |
| Transformer Requirement | 100 VA max system input |
| Power Consumption | 11.5 VA (nominal, @24 VAC 60 Hz; no sensors/actuator) |
| Relay Output Rating | 30 VAC: 1.5A run; 7.5A inrush (max) |
| Actuator Output | 2–10 VDC (min 2kΩ) or Sylkbus |
| Sensor Power Output | 21 VDC ±5% @ 48 mA |
| Operating Temperature | -40 to 150°F (-40 to 65°C) |
| Operating Humidity | 5–95% RH (non-condensing) |
| Dimensions | 4.98" H × 6.3" W × 1.34" D |
| Weight | 0.58 lb |
