Description

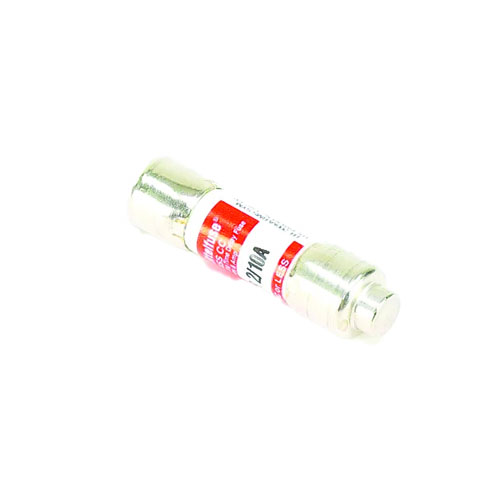

The Littelfuse KLDR.100TXP delivers precision low-current protection where reliability and accuracy matter most. Rated at 0.1 amps and 600 volts, this time-delay Class CC fuse is purpose-built for control transformers, solenoids, and industrial control systems that demand consistent, nuisance-free performance. Its current-limiting, rejection-style construction provides high interrupting capacity to safeguard equipment and personnel, while the time-delay characteristic absorbs harmless inrush currents without unnecessary tripping. The compact Class CC form factor simplifies installation in standard fuse holders, making it an efficient choice for space-constrained control panels. RoHS-compliant materials ensure the KLDR.100TXP meets modern environmental and safety standards without compromise.
Key Features
- 0.1A time-delay (slow-blow) protection for low-current precision applications
- Rated for 600V AC / 300V DC operating environments
- Class CC current-limiting, rejection-style design prevents cross-installation with lower-rated fuses
- High interrupting capacity up to 200kA AC for robust industrial safety
- Time-delay characteristic withstands temporary inrush currents, eliminating nuisance trips
- Compact Class CC form factor enables space-saving installation in standard fuse holders
- Ideal for protecting control transformers, solenoids, and industrial control circuits
- RoHS-compliant construction supports environmental and regulatory compliance
