Description

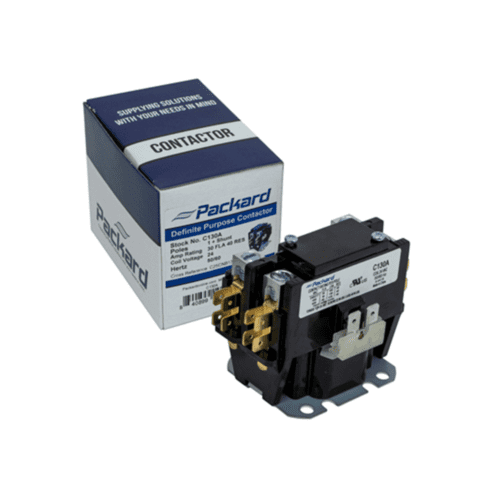

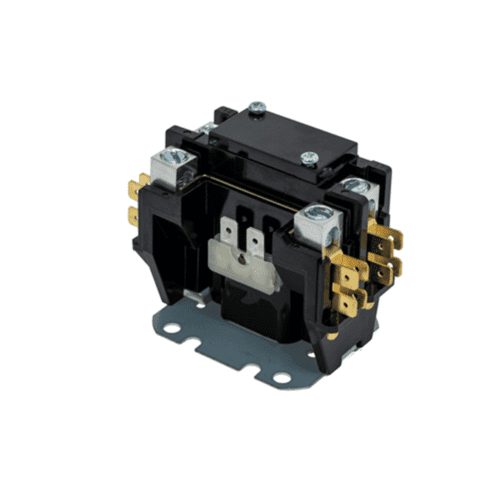

This Packard C130A Contactor is a 1 pole, 24 volt, 30 amp contactor with Dust Free Internal Construction, a box lug connection type, and a versatile foot mount. The coils for the Packard C130A have a class B insulation and are 50/60 Hertz. This item includes a lug, spade terminals, and covers.
This contactor meets the specifications for devices up to 600 VAC and is in accordance with the U.L. Bulletin No. 508 “Industrial Control Equipment.â€
Features
| Amps | 30 |
|---|---|
| Brand | Packard |
| Coil Voltage | 24 |
| Connection Type | Box Lug |
| Construction | Dust Free Internal Construction |
| Contact Current Rating | 30 Amps |
| Country of Origin | CHINA |
| EAN | 840899100258 |
| F/L Inductive Amps | 30 Amps |
| Foot Mount | Versatile Foot Mount |
| Hertz | 50/60 |
| Includes | Includes contactor, lugs, spade terminals, covers and shunts |
| Insulation Class | Coils have Class B insulation |
| Locked Rotor Amps 240/480/600 | 180/150/120 |
| Material | Alloy Steel |
| Manufacturer | Packard |
| Maximum Switching Current | 40 Amps |
| Model Number | C130A |
| Number of Poles | 1 |
| Resistive Amps | 40 |
| UPC | 840899100258 |
The Packard C130A is a direct replacement for:
- Cutler-Hammer C25CNB130T
- Fasco C1S30A
- Global N4143
- Hartland Controls HCCY1NQ02AA303
- Hartland Controls HCCY1XQ02AA303
- Honeywell DP1030A1001
- Honeywell DP1030A5013
- Mars 13101
- Mars 17311
- Mars 17315
- Rheem 42-25101-01
- Siemens 45EG10AJA
- Smart Electric SE2729M
- Weather King 42-25101-01
- White-Rogers: 94-388
