Description

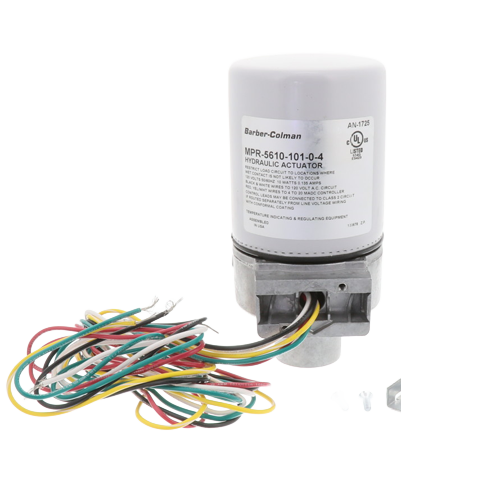

The Schneider Electric (Barber Colman) MPR-5610-101 is a high-performance proportional actuator engineered for precise modulating control of hydronic and HVAC valve systems. Designed to work seamlessly with the VB-7xxx Series two-way and three-way valves in ½” through 2″ sizes, this actuator delivers reliable, repeatable positioning in demanding commercial and industrial building automation applications.
Equipped with a 4 to 20 mA proportional control input, the MPR-5610-101 allows smooth, continuous valve positioning in response to a building automation system (BAS) or direct digital control (DDC) signal. The spring-return mechanism ensures the valve returns to a fail-safe position upon loss of power, providing an added layer of system protection and operational safety.
A corrosion-resistant coated circuit board extends the service life of the actuator in environments where moisture or airborne contaminants may be present, making it well-suited for mechanical rooms, air handling units, and other challenging installation locations.
Key Features
- Proportional control with 4 to 20 mA input signal for precise modulating valve positioning
- 120V AC power supply for compatibility with standard commercial control circuits
- Spring-return operation provides fail-safe valve positioning on power loss
- Compatible with Schneider Electric (Barber Colman) VB-7xxx Series valves in ½” to 2″ sizes
- Corrosion-resistant coated circuit board for enhanced durability in harsh environments
- Designed for building automation and DDC system integration
Specifications
- SKU: MPR-5610-101
- Brand: Schneider Electric (Barber Colman)
- Supply Voltage: 120V AC
- Control Signal: 4 to 20 mA proportional
- Actuator Type: Proportional, Spring Return
- Compatible Valves: VB-7xxx Series, ½” – 2″
- Circuit Board: Corrosion-resistant coated
Applications
- Commercial HVAC hydronic heating and cooling systems
- Air handling units (AHUs) and fan coil units
- Building automation and DDC control systems
- Chilled water and hot water valve control
- Industrial process temperature and flow control
