Overview

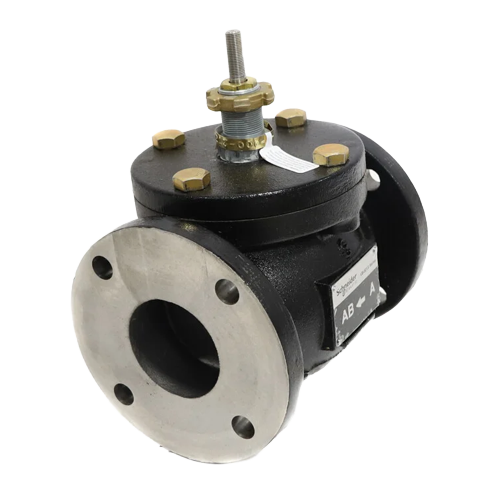

The Schneider Electric (Barber Colman) VB-9213-0-5-13 is a heavy-duty, two-way globe valve engineered for demanding commercial and industrial HVAC hydronic systems. Featuring a 3-inch flanged connection, this valve delivers precise flow control with an equal percentage flow characteristic, making it ideal for variable flow heating and cooling applications where accurate modulation is critical.
Key Features
- Valve type: Two-way globe valve with equal percentage flow characteristic
- Pipe size: 3 inches
- Connection type: Flanged
- Flow coefficient: 85 Cv for high-capacity flow applications
- Body material: Cast iron — ANSI Class 125 rated for durability and pressure performance
- Trim material: Brass for corrosion resistance and long service life
- Stem position: Stem Up Open (SUO) — valve opens as stem moves upward
- Brand lineage: Originally designed under the Barber Colman brand, now part of the Schneider Electric portfolio
Flow Characteristic
The equal percentage flow characteristic provides a non-linear response where equal increments of valve stem travel produce equal percentage changes in flow. This characteristic is well-suited for hydronic heating and cooling coil control, delivering stable and accurate modulation across a wide range of system operating conditions.
Construction & Ratings
- Body: Cast iron, ANSI Class 125
- Trim: Brass
- End connections: Flanged (ANSI Class 125 compatible)
- Stem action: Stem Up Open
Typical Applications
- Commercial and industrial hydronic heating and cooling systems
- Air handling unit (AHU) coil control
- Fan coil unit (FCU) flow regulation
- Building automation and DDC control valve applications
- Variable flow chilled water and hot water distribution systems
Why Choose the VB-9213-0-5-13
As part of the trusted Schneider Electric (Barber Colman) valve series, the VB-9213-0-5-13 is built to pair seamlessly with compatible actuators for fully automated flow control. Its robust cast iron body and brass trim construction ensure long-term reliability in high-cycle commercial environments. The 85 Cv rating supports substantial flow capacity, making it a go-to choice for larger HVAC systems requiring dependable modulating control.
