Description
Overview

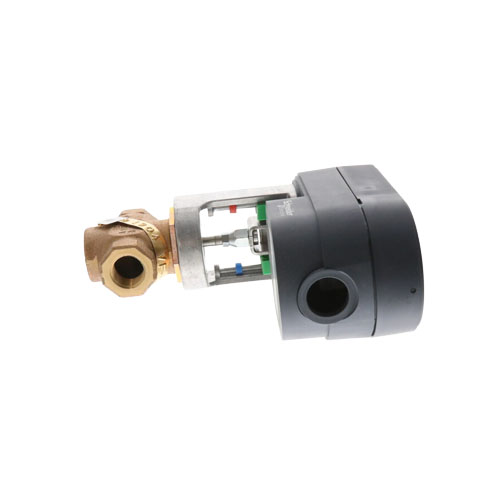

The Schneider Electric (Barber Colman) VF-7213-110-4-2 is a 1/2″ two-way normally open globe valve engineered for precise flow control in commercial HVAC hydronic systems. With a bronze body and brass trim construction, this valve delivers lasting durability and corrosion resistance in demanding heating and cooling applications. Its NPT threaded connection ensures straightforward installation into standard piping configurations.
Key Features
- 1/2″ pipe size with NPT threaded connection for easy installation
- Two-way, normally open configuration for reliable flow management
- 1.3 Cv flow coefficient for accurate flow capacity sizing
- 24-volt operating voltage compatible with standard BAS and HVAC control systems
- Non-spring return actuator design for floating or two-position control
- Floating / two-position control mode for flexible system integration
- Bronze body with brass trim for excellent corrosion resistance and long service life
Control & Actuation
The VF-7213-110-4-2 operates on a 24-volt signal and supports both floating and two-position control strategies, making it compatible with a wide range of building automation and energy management systems. The non-spring return design holds the valve in its last commanded position upon power loss, providing predictable system behavior.
Construction & Compatibility
The bronze body and brass trim combination offers superior resistance to corrosion in hydronic water systems. The NPT connection type simplifies field installation and replacement. This valve is well-suited for fan coil units, air handling units, heat exchangers, and other HVAC terminal equipment requiring modulating or on/off water flow control.
Specifications
- SKU: VF-7213-110-4-2
- Brand: Schneider Electric (Barber Colman)
- Valve Size: 1/2″
- Valve Type: Globe Valve, Two-Way
- Fail Position: Normally Open
- Connection Type: NPT
- Cv Flow Rate: 1.3
- Operating Voltage: 24V
- Actuator Return: Non-Spring Return
- Control Type: Floating / Two Position
- Body Material: Bronze
- Trim Material: Brass
