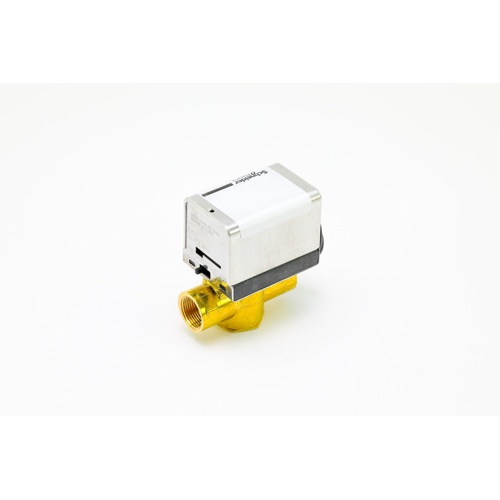

Schneider Electric (Erie) VT2323G23A020 Two-Way Normally Open Zone Valve
The Schneider Electric (Erie) VT2323G23A020 is a two-way, normally open, spring-return zone valve assembly engineered for precise hydronic zone control in commercial and residential HVAC systems. Designed to open automatically on power loss, this valve provides fail-safe operation that protects heating and cooling systems during power interruptions. The two-position control action delivers straightforward on/off zone management, making it an ideal solution for hydronic heating, chilled water, and fan coil unit applications.
Key Features
- Two-way, normally open valve configuration for fail-safe operation
- 3/4″ NPT pipe connection for easy installation into standard hydronic piping
- 3.5 Cv flow coefficient for reliable flow capacity in zone control applications
- 24VAC operating voltage — compatible with standard low-voltage HVAC control systems
- Spring-return actuator automatically returns valve to open position on power loss
- Two-position (on/off) control for straightforward zone switching
- Valve and actuator supplied as a complete, pre-assembled unit
- Compact assembly design simplifies installation and reduces field labor
Specifications
- SKU: VT2323G23A020
- Brand: Schneider Electric (Erie)
- Valve Type: Two-Way, Normally Open
- Connection Size: 3/4″ NPT
- Flow Coefficient (Cv): 3.5
- Control Voltage: 24VAC
- Actuation: Spring Return
- Control Action: Two Position (On/Off)
- Assembly: Valve and Actuator Pre-Assembled
Applications
- Hydronic heating and cooling zone control
- Fan coil unit water flow control
- Chilled water and hot water distribution systems
- Commercial and residential HVAC zoning
- Building automation and energy management systems
