Description

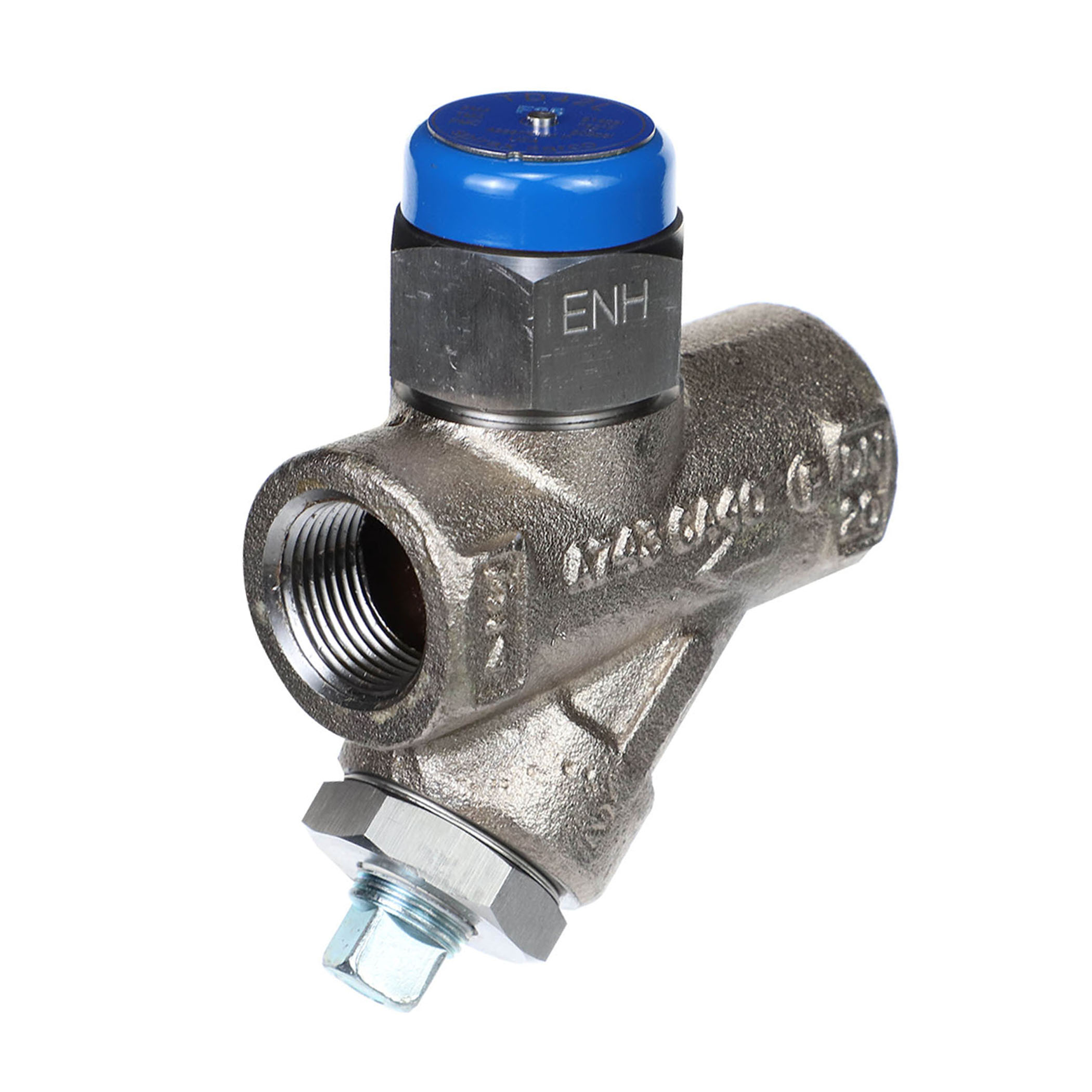

The Spirax-Sarco TD42L is a heavy-duty thermodynamic disc steam trap constructed in stainless steel, engineered for reliable and efficient condensate removal in a wide range of industrial and commercial steam distribution systems. With a 3/4″ NPT connection, this trap is well-suited for steam mains, tracer lines, and process applications where durability and long service life are essential.
Thermodynamic Disc Operation
The TD42L operates on the thermodynamic disc principle, using the difference in velocity and pressure between flash steam and condensate to open and close the valve disc. This simple, robust design features no bellows, floats, or levers — resulting in fewer moving parts, reduced maintenance requirements, and consistent performance across varying load conditions.
Stainless Steel Construction
The all-stainless steel body provides outstanding resistance to corrosion, oxidation, and the harsh conditions found in high-pressure steam environments. This makes the TD42L an ideal choice for applications where longevity and material integrity are critical priorities.
Key Features
- Thermodynamic disc steam trap design for reliable condensate discharge
- Stainless steel body for superior corrosion resistance and durability
- 3/4″ NPT end connections for straightforward installation
- Compact, lightweight design suitable for tight installation spaces
- Minimal moving parts for low maintenance and extended service life
- Suitable for steam mains, tracer lines, and process steam applications
- Spirax-Sarco quality — a globally recognized leader in steam system solutions
Application
The TD42L is designed for use on steam distribution mains, steam tracing lines, and general process steam applications. Its stainless steel construction makes it particularly well-suited for food processing, pharmaceutical, chemical, and other industries where hygiene and material compatibility are important.
Product Details
- Brand: Spirax-Sarco
- Model: TD42L
- SKU: 0683762
- Connection Size: 3/4″ NPT
- Body Material: Stainless Steel
- Trap Type: Thermodynamic Disc
