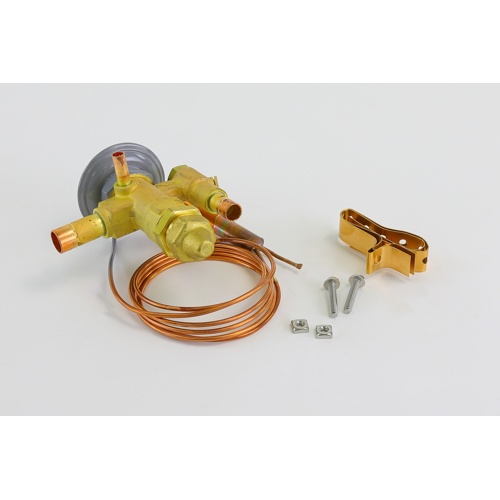

Sporlan Controls 164564 3/8×1/2 R-22 2-Ton TXV with 5′ Capillary

Description

The Sporlan Controls 164564 is a thermostatic expansion valve (TXV) engineered for reliable, precise refrigerant metering in R-22 residential and light commercial cooling systems rated at 2 tons of capacity. Designed and manufactured by Sporlan — a trusted leader in refrigeration and HVAC flow control — this TXV delivers consistent superheat control to maximize system efficiency and protect the compressor from liquid slugging.

Key Features

• Designed for R-22 refrigerant systems
• 2-ton (24,000 BTU/hr) nominal capacity rating
• 3/8″ inlet x 1/2″ outlet connection sizes for straightforward field installation
• 5-foot capillary tube for flexible remote bulb placement on the suction line
• Thermostatic expansion valve design provides accurate superheat regulation
• Protects the compressor by preventing liquid refrigerant flood-back
• Durable construction built to Sporlan’s industry-leading quality standards

Product Specifications

• SKU: 164564
• Brand: Sporlan Controls
• Refrigerant: R-22
• Capacity: 2 Ton
• Inlet Connection: 3/8″
• Outlet Connection: 1/2″
• Capillary Tube Length: 5 feet
• Valve Type: Thermostatic Expansion Valve (TXV)

Application

This TXV is ideal for use in split-system air conditioners, heat pumps, and refrigeration equipment operating on R-22. The 5-foot capillary tube provides ample reach for proper remote bulb placement on the suction line, ensuring accurate temperature sensing and stable superheat control across a wide range of operating conditions.
