Description

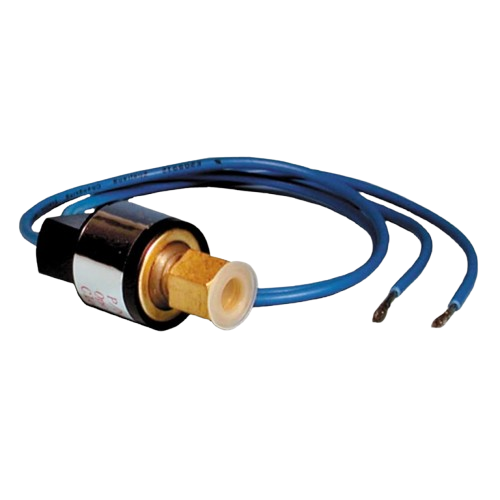

The SUPCO SLP0530 is a high-quality, automatic-reset low-pressure switch designed to safeguard refrigeration and air conditioning systems. Engineered for accuracy and durability, it’s the ideal OEM replacement part for both residential and commercial applications.
Features:
- ¼” SAE 45°female flare fitting with valve core depressor
- Automatic Reset
- Life at rated load: 100,000 cycles
- Low pressure switch opens on pressure fall
- Rated Voltage: 24/120/240 VAC @ 50/60 Hz
- Small size and light weight for direct mounting
- Snap acting stainless steel hermetically sealed sensor (SHP, SLP, and SFC)
- Wire is 18 AWG, 18″ long
Specifications:
- Maximum FLA: 5.8 Amps @ 120VAC
- Maximum FLA: 2.9 Amps @ 240VAC
- Maximum LRA: 34.8 Amps @ 120VAC
- Maximum LRA: 17.4 Amps @ 240VAC
- Ambient Temperature: -22°F to 275°F (-30°C to 135°C)
- Fluid Temperature: -4°F to 302°F (-20°C to 150°C)
- Burst Pressure: 5000 PSI
- Close PSI: 30 PSI
- Open PSI: 5 PSI
- Tolerance: +/- 5 PSI
- DC Voltage: 6Vdc/12Vdc/36Vdc
- Agency Approvals: UL Recognized, CE
