Description

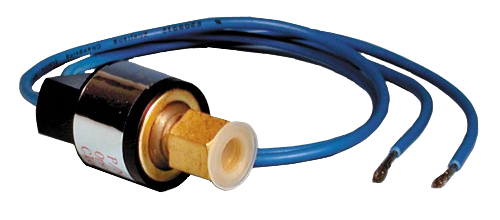

Ensure optimal performance and safety in your HVAC, refrigeration, and air conditioning systems with the SUPCO SLP3560 Low Pressure Switch. Designed for precise pressure control, this switch offers reliable operation in commercial and industrial applications.
Features:
- ¼” SAE 45° female flare fitting with valve core depressor
- Automatic Reset
- Life at rated load: 100,000 cycles
- Low pressure switch opens on pressure fall
- Rated Voltage 24/120/240 VAC @ 50/60 Hz
- Small size and light weight for direct mounting
- Snap acting stainless steel hermetically sealed sensor
- Wire is 18 AWG, 18″ long
Specifications:
- Maximum FLA: 5.8 Amps @ 120VAC
- Maximum FLA: 2.9 Amps @ 240VAC
- Maximum LRA: 34.8 Amps @ 120VAC
- Maximum LRA: 17.4 Amps @ 240VAC
- Ambient Temperature: -22°F to 275°F (-30°C to 135°C)
- Fluid Temperature: -4°F to 302°F (-20°C to 150°C)
- Burst Pressure: 5000 PSI
- Close PSI: 60 PSI
- Open PSI: 35 PSI
- Tolerance: +/- 5 PSI
- DC Voltage: 6Vdc/12Vdc/36Vdc
