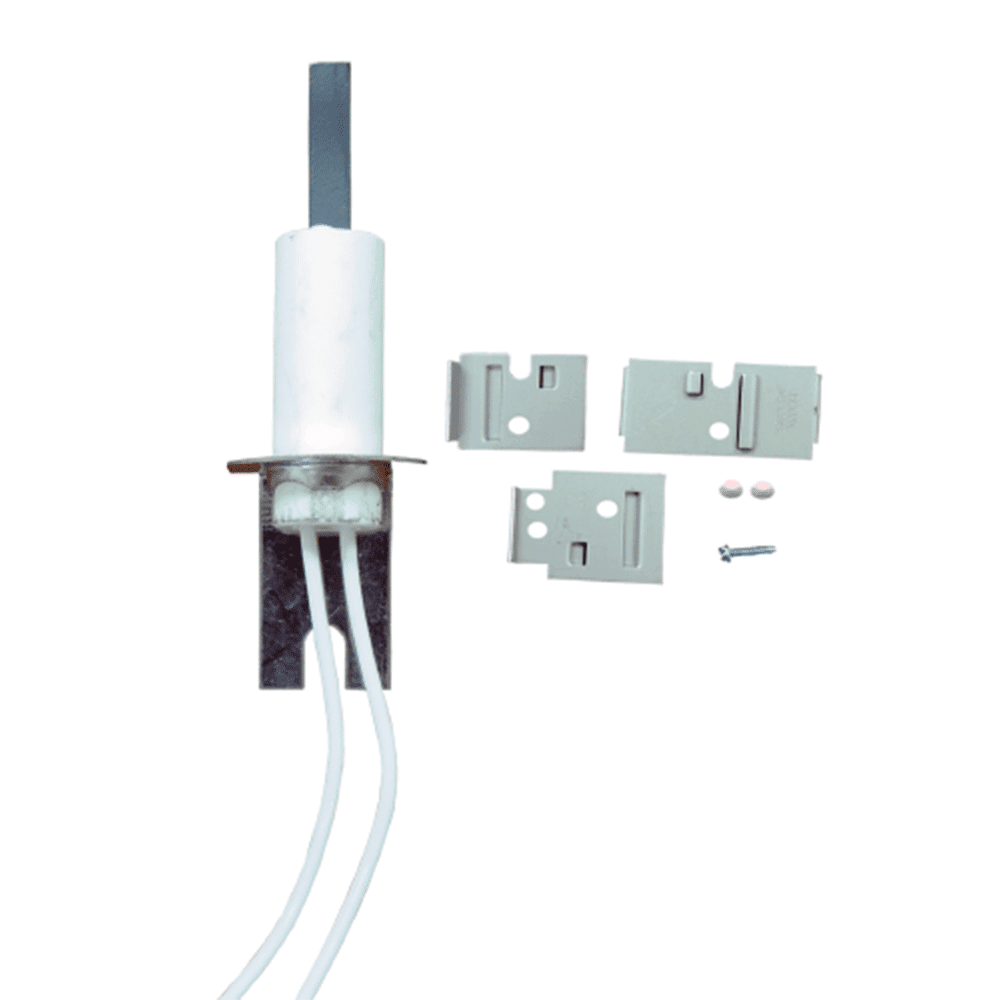

Supco SSN4000 Universal Flat Silicone Nitride Igniter Kit

BRAND: Supco SKU: SSN4000

$43.31

MSRP: $49.81
You save 15%

SiNi Mini Universal Hot Surface Igniter,120Vs

Availability:

Ships By February 8

Description

The Supco SSN4000 is a universal mini flat silicon nitride igniter kit providing the ultimate in durability and cycle life. The SSN400 has a life rating of 200,000 cycles and a 3-year warranty.

Features
  • Silicon Nitride technology for strong, durable operation and performance
  • Easy installation: kits include igniter, mounting brackets, hardware, instructions & cross reference
  • Universal replacements, reduces SKU’s
  • Replaces hundreds of OEM & competitors igniters
  • Longer igniter life (non-porous construction)
  • Low energy consumption uses half the power of Silicon Carbide igniters
  • Superior gas lighting ability, faster time to temperature response than Silicon Carbide igniters
  • No need for power supply module
Applications
  • Furnaces
  • Boilers
  • Water Heaters
  • Unit Heaters
  • Pool Heaters

Additional information

Amperage

0.53 Amps

Cold Resistance

40-100 Ohms @ 75?F +/- 10?F

Time to Temperature

< 10 Seconds @ 115 VAC

Voltage

120V

UPC 687152209569

Data Sheet

Cross Reference

Compatible Products

Brand Compatible SKUs
Norton 201, 271, 101M, 201A, 201D, 201K, 201L, 201M, 201P, 201R, 201W, 271A, 271M, 271N, 271NM, 271P, 271R, 271RS, 271W
Hupp Industries 9050
Williamson 9050
Enerco 10399
DMO Industries 20834, 26789
Olsen 26789
Weil-McLain 29074, 511-330-139, 511-330-190, 511-330-193
Raypak 50015, 600915
H.B. Smith 50018
EZ Flow 62374
GSW P.V. 71082, 86483
John Woods 71082, 86483
Superior Fireplace 94851
Barnett Brass 661924, 661926, 661927, 661928
Frigidaire 902661, 902694, 903110, 903758, 105141000, 632-0770, 632-0880, 632245-0, 632-3540, 632-3811, RH622286893
Intertherm 902661, 902694, 903110, 903758, 105141000, 632-0770, 632-0880, 632245-0, 632-3540, 632-3811, RH622286893
Miller 902661, 902694, 903110, 903758, 105141000, 632-0770, 632-0880, 632245-0, 632-3540, 632-3811, RH622286893
Nordyne 902661, 902694, 903110, 903758, 105141000, 632-0770, 632-0880, 632245-0, 632-3540, 632-3811, RH622286893
Nortek Global HVAC 902661, 902694, 903110, 903758, 105141000, 632-0770, 632-0880, 632245-0, 632-3540, 632-3811, RH622286893
Philco 902661, 902694, 903110, 903758, 105141000, 632-0770, 632-0880, 632245-0, 632-3540, 632-3811, RH622286893
Tappan 902661, 902694, 903110, 903758, 105141000, 632-0770, 632-0880, 632245-0, 632-3540, 632-3811, RH622286893
Snyder General 1001344, 1009604, 1009980, 1096047, 1096048, 1148145, 1148245, 1380654, 1380672, 1380680
Arcoaire 1096048, 1380680
Heil Quaker 1096048
ICP Brands 1096048
Tempstar 1096048, 1148245
Mor-Flo 3200618
Integra 3260618, 6905032
Goodman 10401009, B11725-06, B1193939, B1401009
Amana 10755002, 17035002, B138196P01, B144676P01, B144676P02, B340039P01
Ducane 20015201
Rheem 90434300, 62-212868-82, 62-22441-01, 62-22668-93, 62-22868-02
Roberts Gordon 90434300, 90436600
Whirlpool 99794323, 99794328
Giant PV 526000125, 626000025, FC067
York 025-27766-000, 025-27774-000, 025-29043-000, 025-29050-000, 025-32625-000, 025-32626-000, 025-33241-000, 373-05342-700, 473-12509-001
Starlite 11120-100-1402, 11120-100-1403, 11120-100-1405, 11120-100-1407, 11120-100-1408, 11120-100-1409
L.B. White 120-07549
White LB Co. 120-07549
Coleman 1474-051, 1474-052
Detroit Radiant 201D
Metzger 201N, 201W
American Road Equipment 201W
White-Rodgers 21D64-2, 767A-301, 767A-303, 767A-306, 767A-310, 767A-311, 767A-350, 767A-353, 767A-354, 767A-357, 767A-361, 767A-364, 767A-365, 767A-366, F767-A357, F767-A361, F767-A365, F767-A366
Trainco Heatmaker 2600-359
Dornback Furnace 271W
Lennox 33J3701, 36N77, 96P01, 98P77, 98P78
Trane 3400339P01, B12996P01, B138196P01, B144676P01, B144676P02, B340039P01, IGN21, IGN23, IGN26, IGN28, IGN30, IGN34
Armstrong Air 383322B001
Robertshaw 41-1090, 41-402, 41-402N, 41-403, 41-403N, 41-404, 41-405, 41-405N, 41-407, 41-407N, 41-408, 41-408N, 41-409, 41-409N, 41-410, 41-410N, 41-411, 41-412N, 41-802N
Uni-Line 41-1090, 41-402, 41-402N, 41-403, 41-403N, 41-404, 41-405, 41-405N, 41-407, 41-407N, 41-408, 41-408N, 41-409, 41-409N, 41-410, 41-410N, 41-411, 41-412N, 41-802N
Wayne Home Equipment 62821-001, 62821-002
Majestic 75-92-104, 75-92-105
Viessmann 9302-093, 9302-094
Temp Controls 9302-094
Clair Brothers C238, C238-1, C242
Surface Igniter FC007, FC024, FC035, FC046, FC050, FC051, FC055
Igniters Direct HSIURK120V
American Standard IGN0030
Johnstone Supply L37-698, L37-699, L37-700, L37-812, L37-814, L37-815, L37-816, L40-765
Carrier LH33ZS001A, LH33ZS002, LH33ZS003, LH33ZS004
Honeywell Q3200U1004
GE (General Electric) WG37X11, WG37X34
Hot Point WG37X11, WG37X34
Grimsby Stove ZCO-350
