Description

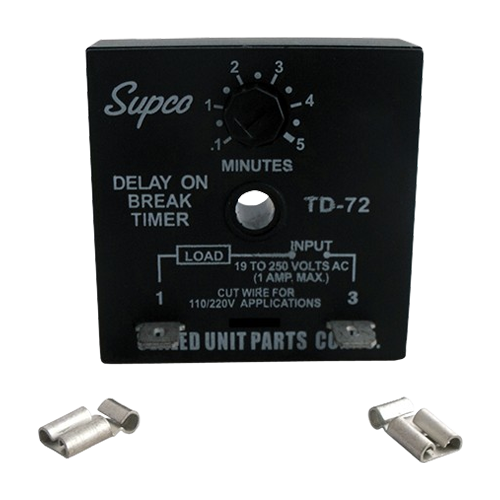

Enhance compressor longevity and system efficiency with the SUPCO TD72, a rugged time-delay-on-break relay designed to protect HVAC and refrigeration compressors from damaging short cycling and voltage fluctuations.
Features:
- 1/4″ male quick connect terminals
- Adjustable time delay on break relay 6 seconds to 5 minutes
- Cannot be used with a cooling anticipator
- Delay on Break Timers (DOB)
Specifications:
- Input Voltage VAC/VDC: 19-250
- Maximum Load Amps: 1
- Maximum Amps Inrush: 10
- Minimum Load Current: 40 Milliamps @ 24VAC
- Operating Temperature: 0° to 160°F (-18° to 71°C)
- Mounting Type: Non-positional, single hole
- Connection: 1/4″ Quick Connect Terminals
