Description

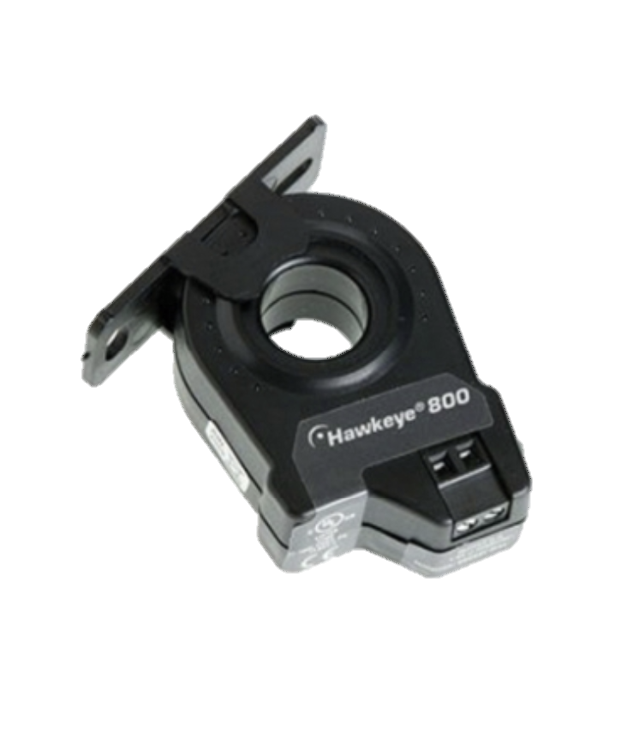

The Veris H800 is a high-performance solid-core current switch designed for reliable monitoring of AC loads ranging from 0.25 to 200 A. Ideal for HVAC systems, unit ventilators, exhaust fans, and recirculation pumps, this switch offers a low fixed trip point as low as 0.25 A, ensuring accurate detection without the need for multiple wraps of the conductor .
Features:
- More reliable for status than relays across auxiliary contacts
- Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads
- Low setpoint – minimum trip point as low as 0.25 A, avoids the need for multiple wraps of the conductor through the sensor even on loads as small as 1/5 hp
- Removable mounting bracket provides installation flexibility
- Quick installation – solid-core for fast retrofit installation
- Induced from monitored current sensor power
