Description

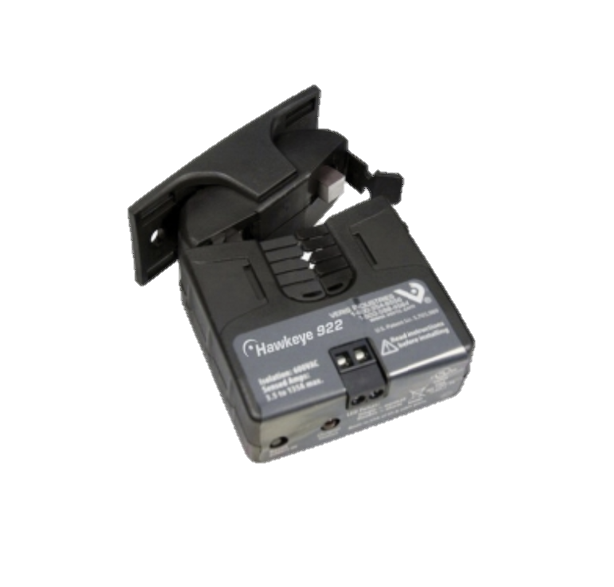

Enhance your building automation and energy management systems with the Veris H922, a user-friendly, self-powered split-core current transducer delivering a proportional 0–5 VDC signal across multiple ranges.
Specifications:
- Application: Building Automation Systems
- Current Measurement Accuracy: ±2% of F.S. above 10% of F.S.
- Current Measurement Range: 0 – 30 A | 0 – 60 A | 0 – 120 A
- Current Sensor type: Current Transducer, AC
- Electrical Wiring Size: 24 – 14 AWG (0.2 – 2.1 mm²)
- Measurement Type: AC Current
- Monitored Frequency Range: 50 – 60 Hz
- Monitored Wire Size: 0.8″ (21 mm)
- Mounting: Split Core
- Operating Humidity: 10 – 90% RH, non-condensing
- Operating Temperature: 5 – 140 °F (-15 – 60 °C)
- Output Specifications: 0 – 5 VDC
- Outputs: Analog output
- Product Certification: UL | CE
- Range: HX22 Series
- Relay Coil Voltage: None
- Relay Contact Ratings: None
- Relay Poles/Throw: None
